Log Window Panel¶
The Log Panel is used by the Sequoia system to report progress, error, statistics and debug messages to the user and the developers.
The Log Panel has only one Global Instance.
It is closed by default in the default startup layout.
Opening The Log Panel¶
To open the Log Panel global instance, select the Main Menu > Panels > LOG - Display Global Panel menu item.
The Log Panel will dock by default as a second tab next to the Task Manager Panel.
It can be docked anywhere else in the UI, or floated independently.
Setting The Log Level¶
The Log Level controls what kinds of information will be displayed in the Log Panel.
The Log Level defines a limit, allowing all lower levels to be included, for example the “Warnings” level also includes to lower “Errors” level.
By default, the Log Level will be set to “Stats”.

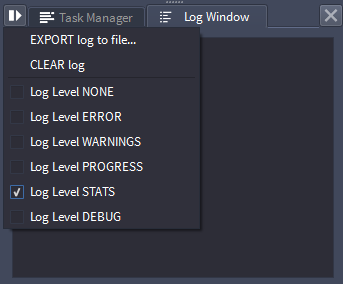

The current Log Level can be set via the checkbox items in the Options Menu .
The following Log Levels are available:
None - the Log is disabled, no messages will be logged.
Error - only Error messages will be displayed. Error messages are prefixed by “ERR:” and are displayed in Red by default .
Warnings - only Errors and Warnings will be displayed. Warning messages are prefixed by “WRN:” and are displayed in Yellow by default .
Progress - only Errors, Warnings and Progress messages will be displayed. Progress messages are prefixed by “PRG:” and are displayed in Green by default.
Stats - Errors, Warnings, Progress and Stats messages will be displayed. Stats messages are prefixed by “STS:” and are displayed in White by default.
Debug - all messages including Debug prints meant mostly for the Sequoia Developers will be displayed. Debug messages are prefixed by “DBG:” and are displayed in Cyan by default.
All Log Level message colors can be customized by editing the sequoia_colors.JSON file in the root folder of the application.
Exporting The Log To A File¶
The Log is currently not stored on disk and its content will be lost after the SEQUOIA session is closed.
To preserve the Log in a file on disk, the Options menu provides the EXPORT Log to File option.
Clearing The Log¶
To clear the content of the Log Panel, use the CLEAR Log menu item from the Options menu.
If the content of the Log was not saved to disk manually, it will be lost and cannot be recovered.
Copying Log Messages¶
To copy one or more lines from the Log, select with the mouse and press CTRL+C, or Right-Click and select Copy from the context menu.
To copy the whole Log content, press CTRL+A for Select All, or Right-Click and pick Select All from the context menu, then use CTRL+C or the Copy item from the context menu to copy into the clipboard.
