Asset Server Options

Overview

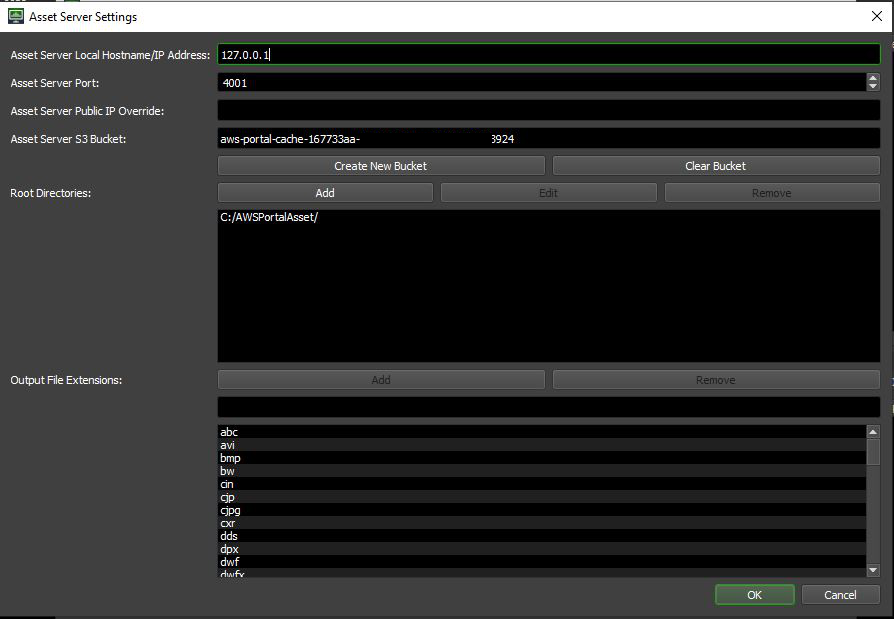

This dialog allows you to configure some basic settings for the AWS Portal Asset Sever.

Note that you will need to have installed the AWS Portal Link and Asset Server for these options to have any effect.

../_images/configure_asset_server.png

Server Address and Port

To change the address of the machine the AWS Portal Asset Server is running on or the port that the server is listening on, simply modify the ‘Server IP Address’ or ‘Server Port’ lines respectively. By default, this will be populated with the values that were set during the installation of the AWS Asset Server.

Public IP Override

For security reasons, AWS will only accept incoming requests from a source IP address. By default, Deadline will use checkip.amazonaws.com to determine what your public IP address is. If you have a firewall that prevents access to that site or that site does not provide an accurate public IP address, you can use this setting to override it. Remember, this is your public IP address, not the internal IP address of your machine.

S3 Bucket

The S3 bucket that all of your assets will be transferred to. Here, you can:

Create New Bucket

  • Create a new S3 bucket to use in the asset transfer system.

Clear Bucket

  • Clear the contents of the bucket.

Root Directories

The Root Directories list contains the directories that AWS Portal Asset Server will use to sync assets between the local on-premise machine and the Deadline AWS Portal Instance. You are able to use both UNC or Mapped drives as a root directory. Path mapping for the listed directories is automatically applied upon creation of a new infrastructure. Only the root directory of all assets is required for the process to work.

Examples:

C:\users\me\documents\myassetfiles\ <-- If asset files are stored locally and everything is running on one machine (not recommended)
/home/me/documents/myassetfiles/ <-- Same as above, but on Linux
X:\assets\ <-- Letter mapped network file share
/mnt/myfileserver/assets/ <-- Mounted file share (Linux)
\\myfileserver\assets/ <-- UNC path
//myfileserver/assets/

Output File Extensions

This is the list of file extensions that are whitelisted to be downloaded back from the AWS Portal instance after a render task has completed. These are global settings for all AWS Portal instances and jobs rendered on them. If you want to set job specific whitelisted file extensions, you can do so in the Job Properties dialog. You can only enter one file extension per line and it must be the complete name of the file extension. Wildcard characters are not supported at this time. Both the file extensions added here and the ones added at the Job Properties level hold the same precedence. Duplicate entries do not have any detrimental effects.
