Rez

Overview

Rez is an open source cross-platform package manager capable of package configuration, build and deployment system for software. See the Academy Software Foundation’s (ASWF) Rez repository for more information.

When enabled this event plugin will attach Extra Info Key Values DEADLINE_REZ_REQUEST_PACKAGES and DEADLINE_REZ_TOOLS to a Deadline Job when submitted. If a Job has these two Extra Info Key Values then the Worker will launch the compute process with a resolved Rez context.

For example, outside of Rez a Deadline Job rendering a Blender scene may try to execute:

/usr/local/Blender/blender -b /home/<username>/cube_diorama.blend -t 0 -s 1 -e 1 -a

The same submission with this event plugin enabled, Rez would execute:

/opt/rez/bin/rez/rez-env blender-3.0+ -- blender -b /home/<username>/cube_diorama.blend -t 0 -s 1 -e 1 -a

Setup

Prior to using Rez with Deadline you should ensure that Rez is installed and configured on your workstations and Worker machines. Deadline assumes that Rez is on your system PATH as per their standard install instructions. Once Rez is installed, the Rez event plugin can be used. To access the Rez event plugin settings, simply enter Super User mode and select Tools -> Configure Events from the Monitor’s menu. From there, select the Rez entry from the list on the left.

../_images/RezEventPlugin_ConfigurationPanel.png

Options

  • State: There are three different states that an Event Plugin can be in: Global Enabled, Opt-In, and Disabled. In order for this feature to function properly, the State must be set to either Global Enabled or Opt-In. Note that if this plugin is in the Opt-In state, the Jobs that want to run this plugin must opt into Rez via Job Properties. Default: Disabled.

  • Force Job Submission To Use Rez: If enabled, the Rez event plugin will fail all job submissions NOT made within a Rez context. If set to False, job submission will succeed with a warning, indicating that submission was made outside a Rez context. Default: False.

  • Derive Package Mode: This selects one of three modes, detailed below, that controls how Deadline derives packages from the Rez context. Default: REZ_USED_RESOLVE.

  • REZ_USED_RESOLVE Mode Separator: Package-version separator used in REZ_USED_RESOLVE mode; by default the used separator is -, alternative separators available are ==, >, <, >=, and <=. Default: -.

The Rez event plugin operates in one of three derive package modes:

  • REZ_USED_REQUEST: Using this mode, if a Job is submitted from within a resolved Rez context, Deadline will attach the contents of the Rez set environment variable REZ_USED_REQUEST to the Job as an Extra Info Key Value. The Worker will then use this value to resolve its Rez context.

  • REZ_USED_RESOLVE: Using this mode, if a Job is submitted from within a resolved Rez context, Deadline will attach the contents of the Rez set environment variable REZ_USED_RESOLVE; minus the implicit packages, taken from REZ_USED_IMPLICIT_PACKAGES; to the Job as an Extra Info Key Value. The Worker will then use this value to resolve its Rez context. This mode allows you to specify a package-version separator in the Rez event plugin configuration by setting the REZ_USED_RESOLVE mode separator parameter.

  • REZ_RXT_FILE: Using this mode, if a Job is submitted from within a resolved Rez context, Deadline will access the current Rez context’s .rxt file pointed to by Rez set environment variable REZ_RXT_FILE. Content from the file will be parsed to create a list of package-versions and attach that list to the Job as an Extra Info Key Value. The Worker will then use this value to resolve its Rez context.

(Step 1/4:) Job Submission

During Job submission, Deadline sets the DEADLINE_REZ_TOOLS Extra Info Key Value on the Job by running rez-context --tools as a subprocess and then parsing the output to compile a list of tools available. If Deadline cannot derive the package or tool list it will log a warning and complete the Job submission without Rez. This is done in all Rez plugin modes.

(Step: 2/4) Post Job Submission

After a Job is submitted with Rez you can view the Extra Info Key Values added from the Job properties panel. Available by double-clicking the Job in the Monitor. DEADLINE_REZ_REQUEST_PACKAGES is the list of package-versions the Worker will attempt to resolve, and DEADLINE_REZ_TOOLS is the list of tool names available in the resolved context.

../_images/RezEventPlugin_SampleJobProperties.png

(Step: 3/4) Render Plugin Configuration

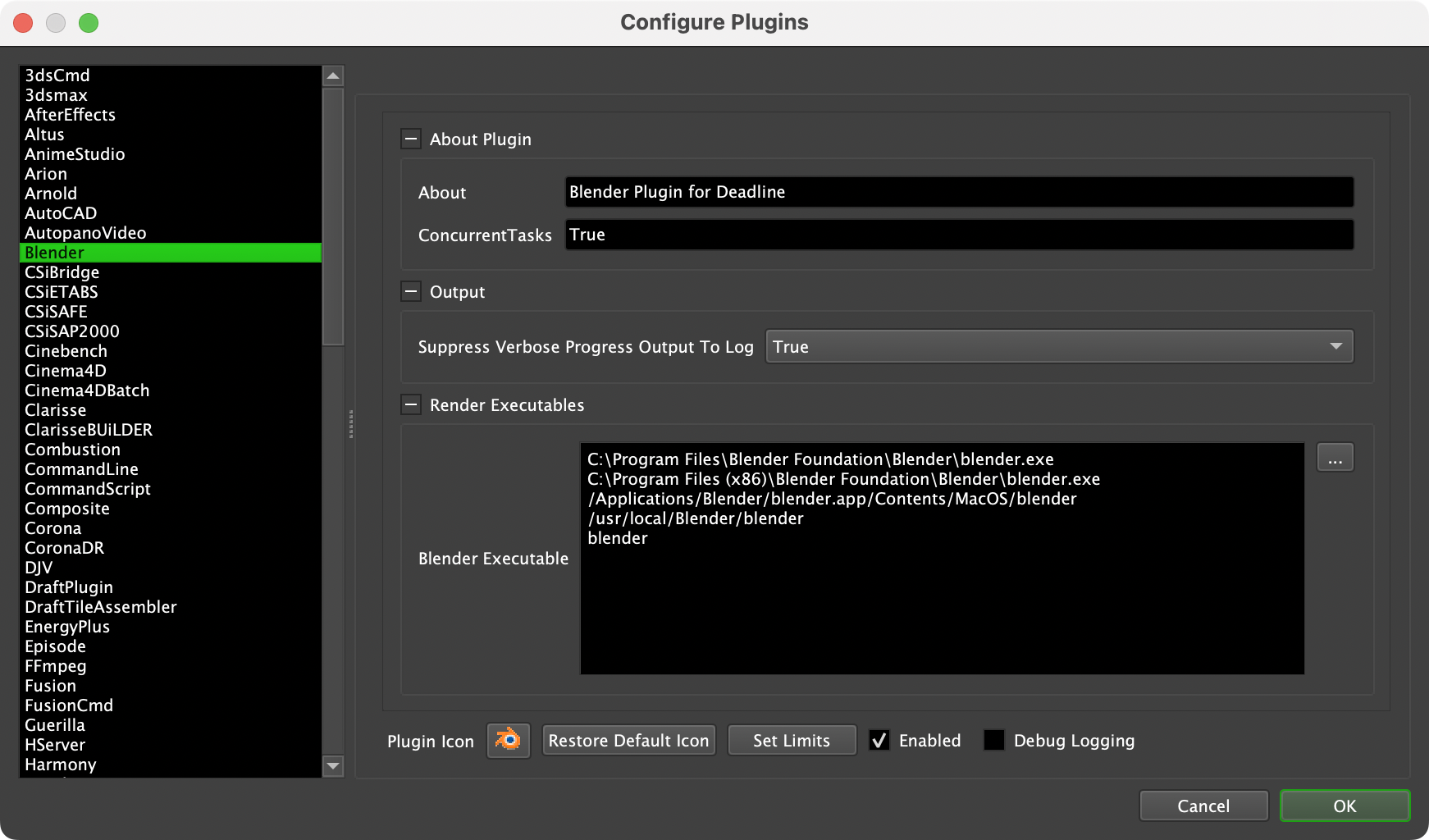

To use Rez in conjunction with existing Deadline render plugins, one additional step is needed. You must add the Rez tool for the appropriate renderer to that render plugin’s executable list. For example, if you have a blender Rez package and in that package a blender tool then you will need to add the tool name to the list of Blender Executables in the Blender plugin. Render Plugin configurations can be found by entering Super User mode and selecting Tools -> Configure Plugins from the Monitor’s menu. The executable list is first checked for Rez tools so will choose a listed tool before any full executable path. If multiple Rez tools are listed, the Worker will select the first tool from DEADLINE_REZ_TOOLS found in the ordered executable list.

../_images/RezEventPlugin_PluginWithTool.png

(Step: 4/4) Job Execution

A Worker dequeues a task for a Deadline Job, the Worker checks if this is a Rez enabled Job via the DEADLINE_REZ_TOOLS Job Extra Info key. If DEADLINE_REZ_TOOLS has a value, then the Deadline.Plugins.DeadlinePlugin.GetRenderExecutable scripting function returns the first Rez tool found in the ordered render executable list; if no Rez tool is found then it searches the executable list in order, as usual. The Worker then invokes the rez-env binary executable as a inline prefix command to the render command:

rez-env DEADLINE_REZ_REQUEST_PACKAGES -- $RENDERER $RENDER_ARGUMENTS

where rez-env will attempt to resolve a context using the Rez packages defined in the Job Extra Info value: DEADLINE_REZ_REQUEST_PACKAGES then within that context, continue to execute command $RENDERER $RENDER_ARGUMENTS and immediately exit the context after the command runs.

FAQ

I don’t have Rez as a tool, why is Rez listed in my DEADLINE_REZ_TOOLS?

So that the Rez CLI is available to contexts resolved by the Worker, rez should be included in DEADLINE_REZ_TOOLS. In all modes, Deadline will automatically add rez to the tool list if not already present.

How does Deadline know what package-versions to request?

This depends on which derive package mode is selected in the Rez event plugin options.

Mode 1: The REZ_USED_REQUEST mode copies the request used to resolve your current context. This mode replicates the behaviour of the package versioning syntax of the Rez CLI; it copies the exact text stored in the environment variable REZ_USED_REQUEST as loose versioning.

Mode 2: The REZ_USED_RESOLVE mode copies the text stored in the environment variable REZ_USED_RESOLVE minus implicit packages from REZ_USED_IMPLICIT_PACKAGES. It recognises the implicit packages by matching the versions of the package-versions in REZ_USED_IMPLICIT_PACKAGES to the versions listed in REZ_USED_RESOLVE. If you have the environment variables:

REZ_USED_IMPLICIT_PACKAGES=C:\Users\platform==windows ~arch==AMD64 ~os==windows-10.0.19041
REZ_USED_RESOLVE=platform-windows arch-AMD64 os-windows-10.0.19041 python-3.7.12 hello_world-1.0.0

then the plugin will strip those package-versions from REZ_USED_RESOLVE that end with windows, AMD64, or windows-10.0.19041 leaving python-3.7.12 hello_world-1.0.0 as the string attached to the Job as DEADLINE_REZ_REQUEST_PACKAGES.

Note

The plugin configuration setting: REZ_USED_RESOLVE Mode Separator will control the Rez package-version separator used such as ==.

Mode 3: The REZ_RXT_FILE mode parses an .rxt file uses the package-versions, minus the implicit packages, found therein. If the rxt file lists:

{
    "key": "filesystem.variant",
    "variables": {
        "index": 0,
        "location": "/mnt/rez/packages",
        "name": "numpy",
        "repository_type": "filesystem",
        "version": "1.21.6"
    }
}

then the resultant package-version requested is numpy-1.21.6.

My workstation and my Worker require different software versions, does the Rez event plugin support this?

Yes, to accomplish this you should use REZ_USED_REQUEST mode. It is sufficient to create a package request that resolves correctly on both your workstation and your Worker via loose versioning.

Does Deadline support a mixture of Rez enabled and disabled render plugins?

Yes. Simply do not enter any Rez tool names in the render executable list for each render plugin that you wish to remain Rez disabled or otherwise known as ‘off-pipeline’.

I have other event plugins in Deadline that execute on Job submission

You can modify the order of execution of event plugins in Deadline. Enter Super User mode and select Tools -> Configure Events from the Monitor’s menu and click and drag an event plugin name to change the order.

Does the Rez context persist after the render executable exits?

No, when invoking your chosen render executable the Deadline Worker executes the CLI equivalent of rez-env $REZ_USED_REQUEST -- $RENDERER $RENDER_ARGUMENTS where $REZ_USED_REQUEST is provided by the Job Extra Info: DEADLINE_REZ_REQUEST_PACKAGES. This statement means it will attempt to resolve a context using the Rez packages defined in the Job Extra Info: DEADLINE_REZ_REQUEST_PACKAGES then within that context, execute command $RENDERER $RENDER_ARGUMENTS and immediately exit the context after the command runs.

My custom render plugin launches multiple processes, will this work with the Rez event plugin?

Yes, although it is important to note that each RunProcess or RunManagedprocess invoked in your plugin will run in separate, identical Rez contexts. Each Rez context created based off the Extra Info Key Values DEADLINE_REZ_REQUEST_PACKAGES and DEADLINE_REZ_TOOLS attached to the Job. If you need both processes to run in the same context you should constuct a meta- Rez tool that manages launching both processes and launch that tool from your plugin.

Does the Rez event plugin support cloud based Workers?

Yes. If you wish to use the Rez event plugin with cloud based Workers you will need to configure additional infrastructure so that your Workers can reach your Rez package repositories. As latency increases, you should consider Rez resolve caching via a memcache service and Rez package caching (copying Rez package payloads from a package repository to a local disk to speed up runtime environments) to handle latency between your origin Rez repository and your remote cloud location. Rez package caching is explained here.

Does the Rez event plugin support AWS Portal Workers?

Yes, but not out of the box. Our available Deadline AMIs do not come with Rez installed. You will need to create a custom AWS AMI that has Rez installed and configured. Additionally you will need to customize the security and network settings of your AWS Portal infrastructure to allow your Workers to reach your Rez package repositories.

Does the Rez event plugin support DeadlineEventListener.RunProcess?

No, not at this time. DeadlineEventListener.RunProcess and DeadlineEventListener.RunProcessAsUser do not engage Rez, so processes launched using these commands will not recreate a Rez context to run within.

Error Messages and Meanings

This is a collection of known Rez error messages and their meanings, as well as possible solutions. We want to keep this list as up to date as possible, so if you run into an error message that isn’t listed here, please email Deadline Support and let us know.

Currently, no error messages have been reported for this event plugin.
