Arithmetic Category

  • The following list shows the Arithmetic Category Magma nodes available in Krakatoa MX 2.x.

Abs

  • The Abs operator calculates the Absolute value of the input value.
  • The Abs operator has one inputs and one output.
../../../_images/arithmetic_abs.png

Input 1: Value

  • The Input can be an Int, Float, or Vector Value.
  • In the case of Vector, the operator will be applied to each of the Vector’s components.
  • Quat values are not supported.
  • The input has no default value when unconnected.

Output 1: Abs

  • The Output is the Absolute (unsigned) Value of the Input Value.
  • The Properties and Actions rollout of the node exposes no additional properties.

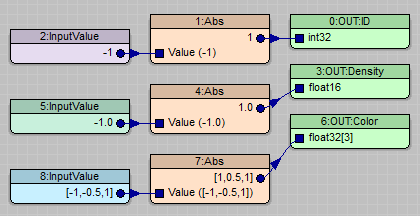

  • Examples:
../../../_images/arithmetic_abs_examples.png

Add

  • The Add operator adds two values and outputs their sum.
  • The Add operator has two inputs and one output.
../../../_images/arithmetic_add.png

Input 1: Left Value

  • The first Input can be an Int, Float, or Vector Value.
  • Quat values are not supported.
  • The Input has a default of 0, 0.0 or [0,0,0] when unconnected, depending on the Input Defaults > Value Type specified in the node’s properties.

Input 2: Right Value

  • The second Input must match the type of the Input 1 Value.
  • The Input has a default of 0, 0.0 or [0,0,0] when unconnected, depending on the Input Defaults > Type specified in the node’s properties.

Output 1: Add

  • The Output is the Sum of the two Input Values.
  • The Properties and Actions rollout of the node defines:
    • Value Type:
      • Int - both Inputs will default to Int values when unconnected.
      • Float (default) - both Inputs will default to Float values when unconnected.
      • Vector - both Inputs will default to Vector values when unconnected.
    • Left Value - defines the default value for the first input, default is 0.0.
    • Right Value - defines the default value of the second input, default is 0.0.

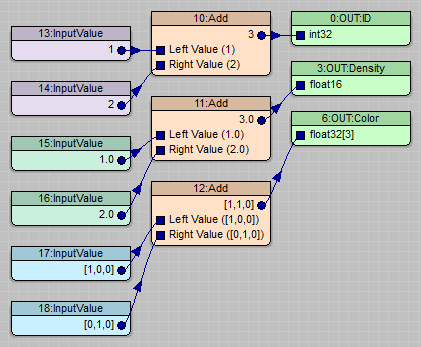

  • Examples:
../../../_images/arithmetic_add_examples.png

Ceil

  • The Ceil operator produces the closest whole number that is greater or equal to the input, thus rounding it up.
  • The Ceil operator has one input and one output.
../../../_images/arithmetic_ceil.png

Input 1: Value

  • The Input can be a Float or a Vector Value.
  • Int and Quat values are not supported.
  • The Input has no default value when unconnected.

Output 1: Ceil

  • The Output is the input value, rounded up to the nearest whole number.
  • The Properties and Actions rollout of the node exposes no additional properties.

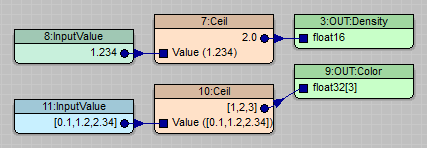

  • Examples:
../../../_images/arithmetic_ceil_examples.png

Divide

  • The Divide operator calculates the quotient of two inputs.
  • The Divide operator has two inputs and one output.
../../../_images/arithmetic_divide.png

Input 1: Dividend

  • The Input can be an Int, Float, or Vector Value.
  • Quat values are not supported.
  • The Input has a default value of 1.0 when unconnected, making 1 over a value easier to set up.

Input 2: Divisor

  • The second Input can be Float when Input 1 is a Float or a Vector value.
  • The second Input can be Vector when Input 1 is also a Vector value.
  • The second Input can be Int when Input 1 is a also an Int value.
  • Quat values are not supported.
  • The Input has a default value of 1.0 when unconnected, making sure the Dividend is not changed unless the Divisor is explicitly set or connected to an InputValue.

Output 1: Divide

  • The Output is the first Input value, divided by the second Input.
  • The Properties and Actions rollout of the node defines:
    • Value Type:
      • Int - both Inputs will default to Int values when unconnected.
      • Float (default) - both Inputs will default to Float values when unconnected.
      • Vector - both Inputs will default to Vector values when unconnected.
    • Dividend - defines the default value for the first input, default is 1.0.
    • Divisor - defines the default value of the second input, default is 1.0.

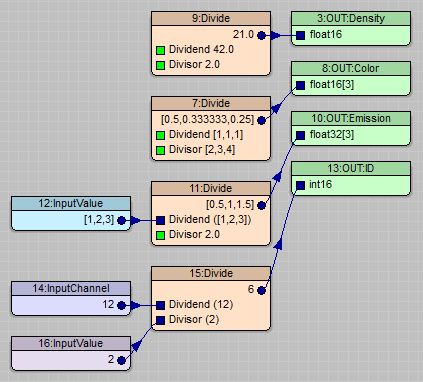

  • Examples:
../../../_images/arithmetic_divide_examples.png

Floor

  • The Floor operator produces the closest whole number that is less than or equal to the input, thus rounding it down.
  • The Floor operator has one input and one output.
../../../_images/arithmetic_floor.png

Input 1: Value

  • The Input can be a Float or a Vector Value.
  • Int and Quat values are not supported.
  • The Input has no default value when unconnected.

Output 1: Floor

  • The Output is the input value, rounded down to the nearest whole number.
  • The Properties and Actions rollout of the node exposes no additional properties.

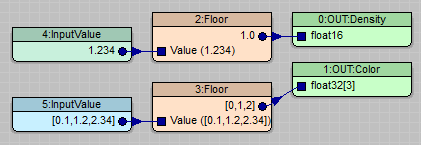

  • Examples:
../../../_images/arithmetic_floor_examples.png

Log

  • The Log operator calculates the Natural Logarithm of the input value.
  • The Log operator has one input and one output.
../../../_images/arithmetic_log.png

Input 1: Base

  • The Input can be only a Float value.
  • Int, Vector and Quat values are not supported.
  • The Input has no default value when unconnected.

Output 1: Log

  • The Output is the Natural Logarithm of the input value, so that Input = e ^ Output.
  • The Properties and Actions rollout of the node exposes no additional properties.
  • Examples:
../../../_images/arithmetic_log_examples.png
  • NOTE: Krakatoa MX ships with two pre-defined BlackOps found under BLOP Category > Logarithms:
  • LogBase for calculating the logarithm with a user-defined base.

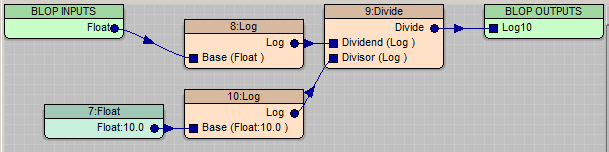

../../../_images/arithmetic_log10.png ../../../_images/arithmetic_log10_blop.png
  • Log10 for calculating the logarithm with base of 10.

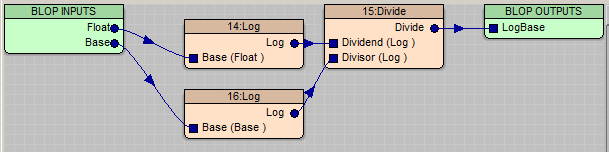

../../../_images/arithmetic_logbase.png ../../../_images/arithmetic_logbase_blop.png

Modulo

  • The Modulo operator calculates the remainder of the quotient of two values.
  • The Modulo operator has two inputs and one output.
../../../_images/arithmetic_modulo.png

Input 1: Dividend

  • The Input can be an Int, Float, or Vector Value.
  • Quat values are not supported.
  • The Input has a default value of 0 when unconnected.

Input 2: Divisor

  • The second Input can be Float when Input 1 is a Float or a Vector value.
  • The second Input can be Vector when Input 1 is also a Vector value.
  • The second Input can be Int when Input 1 is a also an Int value.
  • Quat values are not supported.
  • The Input has a default value of 1 when unconnected.

Output 1: Divide

  • The Output is remainder of the division of the two Input values.
  • The Properties and Actions rollout of the node defines:
    • Value Type:
      • Int (default) - both Inputs will default to Int values when unconnected.
      • Float - both Inputs will default to Float values when unconnected.
      • Vector - both Inputs will default to Vector values when unconnected.
    • Dividend - defines the default value for the first input, default is 0.
    • Divisor - defines the default value of the second input, default is 1.

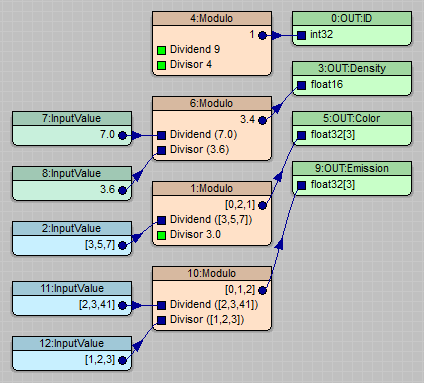

  • Examples:
../../../_images/arithmetic_modulo_examples.png

Multiply

  • The Multiply operator calculates the product of two input values.
  • The Multiply operator has two inputs and one output.
../../../_images/arithmetic_multiply.png

Input 1: Left Value

  • The first Input can be an Int, Float, or Vector Value.
  • Quat values are not supported.
  • The Input has a default value of 1.0 when unconnected, making sure the Right Value would not be modified by default.

Input 2: Right Value

  • The second Input can be Float when Input 1 is a Float or a Vector value.
  • The second Input can be Vector when Input 1 is also a Vector value.
  • The second Input can be Int when Input 1 is a also an Int value.
  • Quat values are not supported.
  • The Input has a default value of 1.0 when unconnected, making sure the Left Value would not be changed by default.

Output 1: Multiply

  • The Output is the first Input value multiplied by the second Input.
  • The Properties and Actions rollout of the node defines:
    • Value Type:
      • Int - both Inputs will default to Int values when unconnected.
      • Float (default) - both Inputs will default to Float values when unconnected.
      • Vector - both Inputs will default to Vector values when unconnected.
    • Left Value - defines the default value for the first input, default is 1.0.
    • Right Value - defines the default value of the second input, default is 1.0.

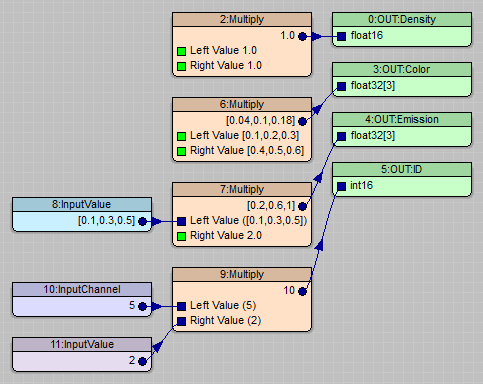

  • Examples:
../../../_images/arithmetic_multiply_examples.png

Negate

  • The Negate operator inverts the sign of the input value.
  • The Negate operator has one input and one output.
../../../_images/arithmetic_negate.png

Input 1: Value

  • The Input can be an Int, Float, or Vector Value.
  • Quat values are not supported.
  • The Input has no default value when unconnected.

Output 1: Multiply

  • The Output is the Input value with inverse sign.
  • The Properties and Actions rollout of the node exposes no additional properties.

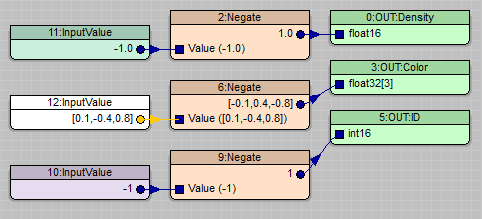

../../../_images/arithmetic_negate_examples.png

Power

  • The Power operator calculates the first input to the power of the second input.
  • The Power operator has two inputs and one output.
../../../_images/arithmetic_power.png

Input 1: Base

  • The first Input can be an Int, Float, or Vector Value.
  • Quat values are not supported.
  • The Input has a default value of 1.0 when unconnected.

Input 2: Exponent

  • The second Input can be Float when Input 1 is a Float or a Vector value.
  • The second Input can be Vector when Input 1 is also a Vector value.
  • The second Input can be Int when Input 1 is a also an Int value.
  • Quat values are not supported.
  • The Input has a default value of 1.0 when unconnected, making sure the Base would not be changed by default.

Output 1: Multiply

  • The output is the first input multiplied by itself second input times.
  • The Properties and Actions rollout of the node defines:
    • Value Type:
      • Int - both Inputs will default to Int values when unconnected.
      • Float (default) - both Inputs will default to Float values when unconnected.
      • Vector - both Inputs will default to Vector values when unconnected.
    • Base - defines the default value for the first input, default is 1.0.
    • Exponent - defines the default value of the second input, default is 1.0.

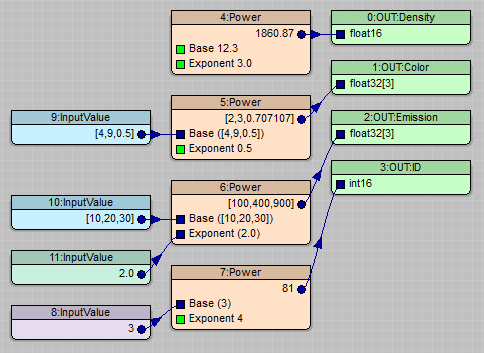

  • Examples:
../../../_images/arithmetic_power_examples.png

Sqrt

  • The Sqrt operator has one input and one output.
../../../_images/arithmetic_sqrt.png

Input 1: Value

  • The input must be of type Float.
  • The input does not have a default value when unconnected.

Output 1: Multiply

  • The output is the positive square root of the input.
  • Examples:
../../../_images/arithmetic_sqrt_examples.png

Subtract

  • The Subtract operator has two inputs and one output.

Input 1: Value

  • The first input can be a Vector, a Float or an Integer
  • The first input has a Float default value of 1.0 when unconnected.
Input 2: Value
  • The second input must match the first input’s type
  • The second input has a default value of 0.0 when unconnected.
  • The default type can be switched between Vector, Float and Integer.

Output 1: Subtract

  • The output is the difference between the two inputs.
  • Examples:
