Loading A Mesh

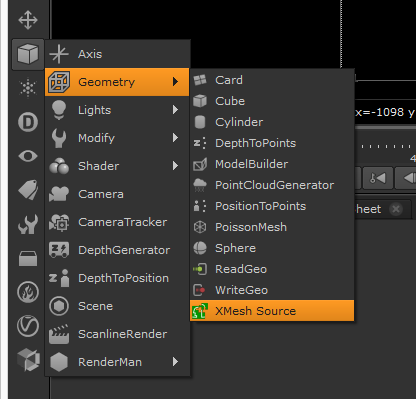

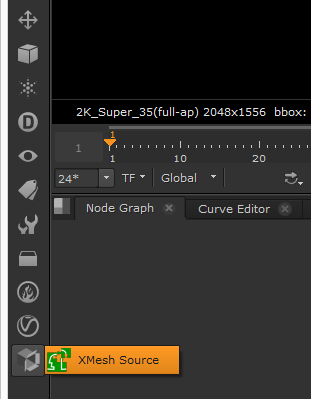

1. Create an XMesh Source node, which can be found in the Thinkbox menu,



   or the 3D → Geometry menu.

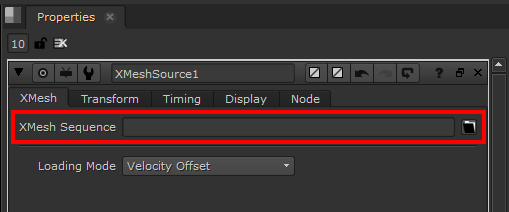

2. In the properties panel for the XMesh Souce node you created, click the folder icon to the right of XMesh Sequence on the XMesh tab.

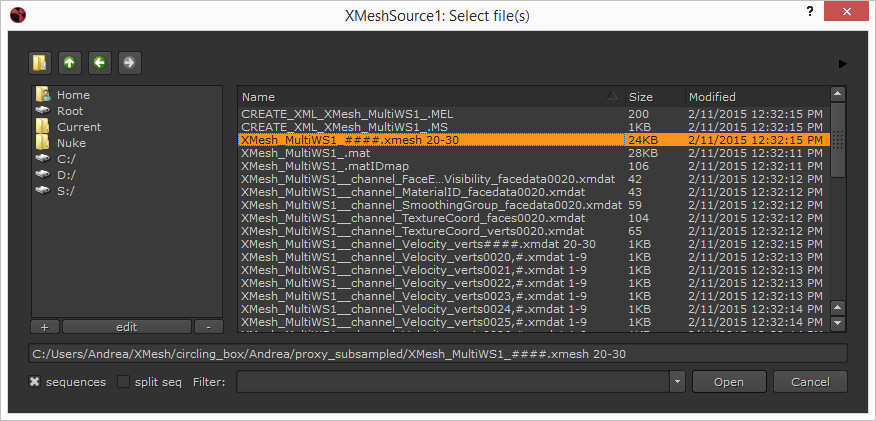

3. In the “Select file(s)” dialog that appears, choose an .xmesh sequence that you want to load. The mesh should appear in the viewport.
