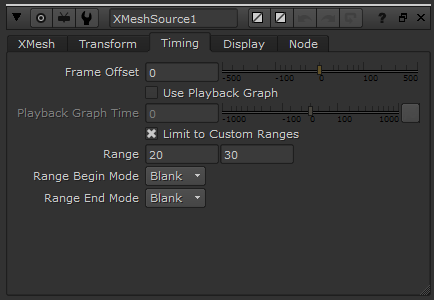

Timing Tab

Controls

Frame Offset

This offset is added to the scene frame number to calculate the file frame number. For example, if you are on frame 0 in the scene, and the frame offset is 10, then XMesh will load frame number 10 from the file sequence.

Use Playback Graph

Enable the Playback Graph Time control, which is described below.

Playback Graph Time

This animatable parameter controls which file frame number is loaded for each scene frame.

Limit to Custom Ranges

When enabled, the XMesh Loader will only load frame numbers inside the Range specified.

Range Begin Mode

Control what the XMesh Loader will use for frames before the first frame. Hold will use the data from the first frame, while Blank will use an empty mesh.

Range End Mode

Control what the XMesh Loader will use for frames after the last frame. Hold will use the data from the last frame, while Blank will use an empty mesh.
