CSiSAFE

Job Submission

You can submit CSiSAFE jobs from the Monitor.

submitter advOptions

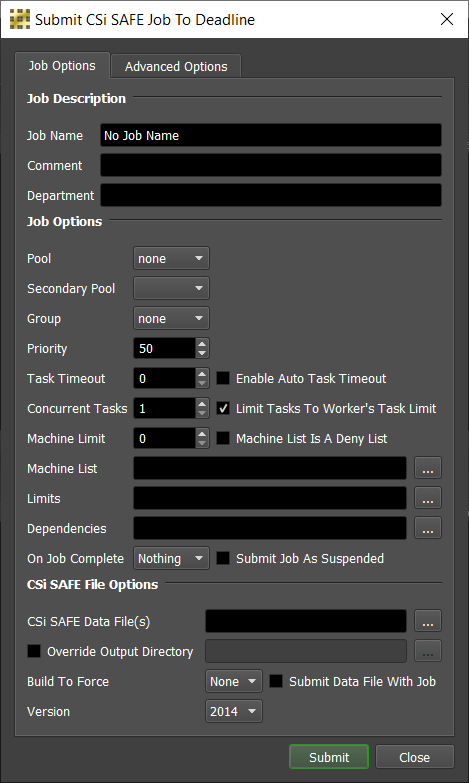

Submission Options

The general Deadline options are explained in the Job Submission documentation. The CSiSAFE specific options are:

  • CSi SAFE Data File(s): The CSi SAFE Data File to be processed. CSi SAFE Files (*.FDB), Microsoft Access Files (*.MDB), Microsoft Excel Files (*.XLS), CSi SAFE Text Files (*.$2K *.F2K) are supported.

  • Override Output Directory: If this option is enabled, an output directory can be used to re-direct all processed files to.

  • Build To Force: You can force 32 or 64 bit processing with this option.

  • Submit Data File With Job: If this option is enabled, the SAFE file will be submitted with the job, and then copied locally to the Worker machine during processing.

  • Version: The version of CSi SAFE to process with.

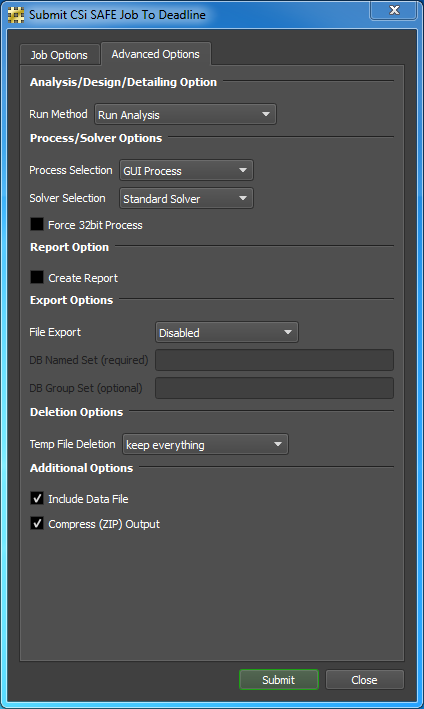

CSiSAFE Analysis/Design/Detailing Option:

  • Run Method: Choose a run combination option such as “Disabled”, “Run Analysis”, “Run Analysis & Design” or “Run Analysis, Design & Detailing”.

CSiSAFE Process/Solver Options:

  • Process Selection: Choose to execute inside of the existing SAFE application process or as a separate process.

  • Solver Selection: Select the Solver to perform the analysis on the data file.

  • Force 32bit Process: Force analysis to be calculated in 32 bit even when the computer is 64 bit.

CSiSAFE Report Option:

  • Create Report: Create a report based on the current report settings in the model file.

CSiSAFE Export Options:

  • File Export: File export a Microsoft Access, Microsoft Excel, or text file.

  • DB Named Set (required): The name of the database tables named set that defines the tables to be exported. This parameter is required.

  • DB Group Set (optional): The specified group sets the selection for the exported tables. This parameter is optional. If it is not specified, the group ALL is assumed.

CSiSAFE Deletion Options:

  • Temp File Deletion: Choose a deletion option to cleanup the analysis/output files if required such as “keep everything”, “delete analysis & output files”, “delete analysis files only” or “delete output files only”.

CSiSAFE Additional Options:

  • Include Data File: If enabled, the output zip file will contain the data file OR if outputting to a directory path, the data file will be included.

  • Compress (ZIP) Output: Automatically compress the output to a single zip file.

Plug-in Configuration

You can configure the CSiSAFE plug-in settings from the Monitor. While in super user mode, select Tools -> Configure Plugins and select the CSiSAFE plug-in from the list on the left.

../_images/cp_csisafe.png

Executables

  • SAFE 12 Executable: The path to the SAFE 12 executable file used for simulating. Enter alternative paths on separate lines.

  • SAFE 2014 Executable: The path to the SAFE 2014 executable file used for simulating. Enter alternative paths on separate lines.

FAQ

Currently, there are no FAQs for this plug-in.

Error Messages and Meanings

This is a collection of known CSiSAFE error messages and their meanings, as well as possible solutions. We want to keep this list as up to date as possible, so if you run into an error message that isn’t listed here, please email Deadline Support and let us know.

Currently, no error messages have been reported for this plug-in.
