You can submit CSiSAP2000 jobs from the Monitor.
The general Deadline options are explained in the Job Submission documentation. The CSiSAP2000 specific options are:
CSi SAP2000 Data File(s): The CSi SAP2000 Data File to be processed. CSi SAP2000 Files (*.SDB), Microsoft Access Files (*.MDB), Microsoft Excel Files (*.XLS), CSi SAP2000 Text Files (*.$2K *.S2K) are supported.
Override Output Directory: If this option is enabled, an output directory can be used to re-direct all processed files to.
Build To Force: You can force 32 or 64 bit processing with this option.
Submit Data File With Job: If this option is enabled, the SAP2000 file will be submitted with the job, and then copied locally to the Worker machine during processing.
Version: The version of CSi SAP2000 to render with.

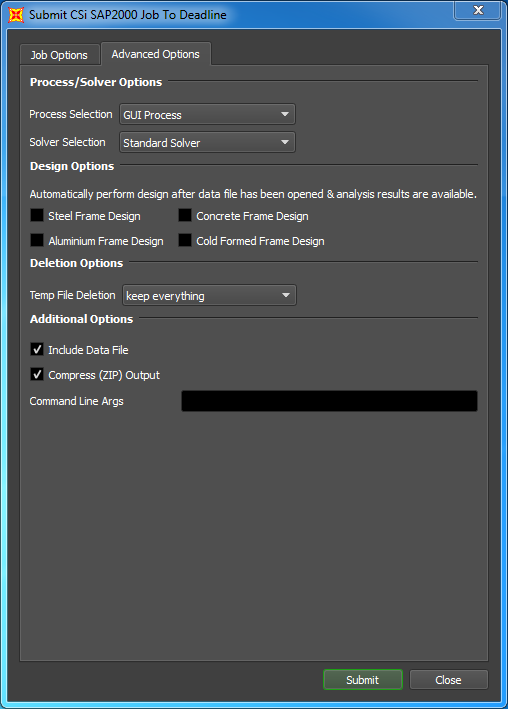

CSiSAP2000 Process/Solver Options are:
Process Selection: Choose to execute inside of the existing SAP2000 application process or as a separate process.
Solver Selection: Select the Solver to perform the analysis on the data file.
CSiSAP2000 Design Options are:
4 options are available to automatically perform design after the data file has been opened & analysis results are available.
Steel Frame Design: Perform steel frame design after the analysis has completed.
Concrete Frame Design: Perform concrete frame design after the analysis has completed.
Aluminium Frame Design: Perform aluminium frame design after the analysis has completed.
Cold Formed Frame Design: Perform cold formed frame design after analysis has completed.
CSiSAP2000 Deletion Options are:
Temp File Deletion: Choose a deletion option to cleanup the analysis/log/out files if required.
CSiSAP2000 Additional Options are:
Include Data File: If enabled, the output zip file will contain the data file OR if outputting to a directory path, the data file will be included.
Compress (ZIP) Output: Automatically compress the output to a single zip file.
Command Line Args: Additional command line flags/options can be added here if required.

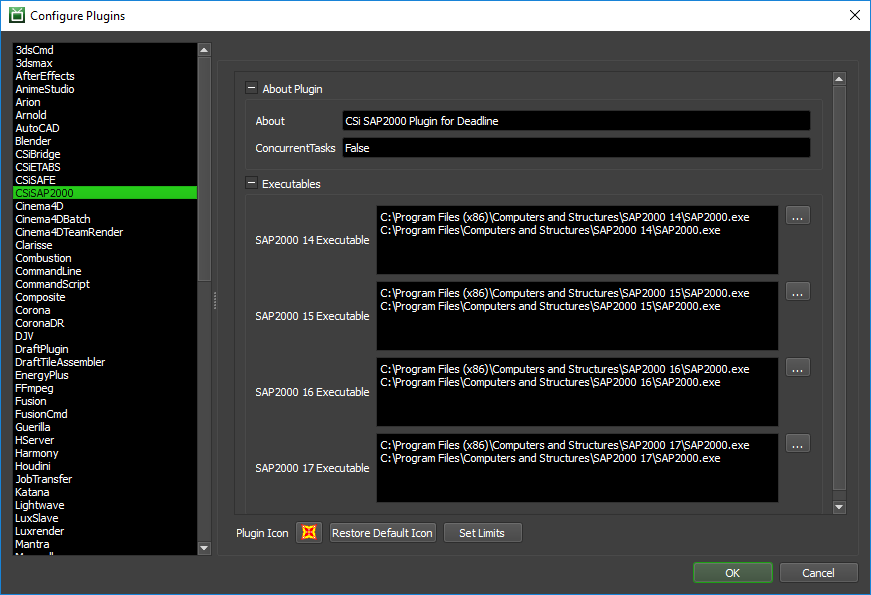

You can configure the CSiSAP2000 plug-in settings from the Monitor. While in super user mode, select Tools -> Configure Plugins and select the CSiSAP2000 plug-in from the list on the left.
SAP2000 14 Executable: The path to the SAP2000 14 executable file used for simulating. Enter alternative paths on separate lines.
SAP2000 15 Executable: The path to the SAP2000 15 executable file used for simulating. Enter alternative paths on separate lines.
SAP2000 16 Executable: The path to the SAP2000 16 executable file used for simulating. Enter alternative paths on separate lines.
SAP2000 17 Executable: The path to the SAP2000 17 executable file used for simulating. Enter alternative paths on separate lines.
Currently, there are no FAQs for this plug-in.
Error Messages and Meanings¶
This is a collection of known CSiSAP2000 error messages and their meanings, as well as possible solutions. We want to keep this list as up to date as possible, so if you run into an error message that isn’t listed here, please email Deadline Support and let us know.
Currently, no error messages have been reported for this plug-in.
