Deadline Secrets Management

Deadline Secrets Management is a feature introduced in Deadline 10.1.10 for securely managing storage and access of Secrets for your render farm. This feature provides strong encryption for all of Deadline’s Secrets, and provides additional tools for administrators to control secret access by clients. This feature also includes granular audit logging so you know who requests secrets when, and what the outcome is.

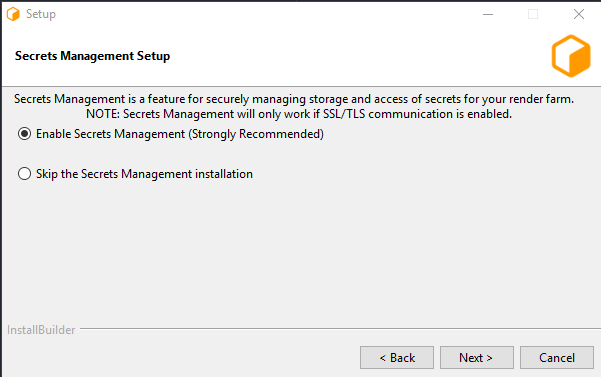

This feature is enabled by running the Repository Installer, and requires you to create an Administrator User. Access to secrets is controlled through the Identity Management mechanism. Note that this feature requires all Client communications connect to the Remote Connection Server over a SSL/TLS connection to securely Authenticate and Authorize requests. You may refer to the Glossary for definitions on the common terms used throughout this page.

Please see the Getting Started page for an example walkthrough if this is your first time using Deadline Secrets Management.

Identity Management

Any Deadline application connected to your farm will automatically register itself as an Identity in the Database. However, it will be unable to retrieve or store any secret until it is given the appropriate Status and Role. Please see the below sections for more information on “Registration Status” and the “Assigned Role”.

Registration Status

Indicates the Registration status of an Identity. There are three possible Registration statuses:

Pending

This is the default status for an Identity that has just registered itself. It cannot access any secrets with this status.

Registered

This status allows Identities to make use of the Secrets API, so long as they have the appropriate Identity Role.

Revoked

Identities with this status will not be allowed to make use of the Secrets API.

Assigned Roles

Assigned Roles define the permissions of an Identity. There are three Assigned Roles:

Administrator

The administrator role is given to users that are created either by the Repository Installer when enabling the Deadline Secrets Management feature for the first time, or by running the CreateNewAdmin command. Note: there can be more than one Administrator user. All Administrators are equal and have full read and write access to all secrets.

Server

The Server role is intended to be granted to your machine(s) running the Remote Connection Server application. The Server role is granted to a registered machine by an administrator in the Monitor UI. In order to encrypt and decrypt secrets, the master key must be assigned to the Server by and Administrator user running the GrantKeyAccessToServer command. Servers can encrypt and decrypt all secrets, and are responsible for providing secrets to approved clients.

Client

The Client role is typically intended to be granted to any of your machines running the Worker application. The Client role is granted to a registered machine by an administrator in the Monitor UI. Clients can request storage of secrets not in the Administrator Secret Access Level, and can retrieve secrets from all namespaces when authenticating through the server.

Assigning Identity Status and Roles

Identities are managed through the Monitor application. Note that this interface is only available through Remote Connection to a Remote Connection Server and requires Administrator credentials to access.

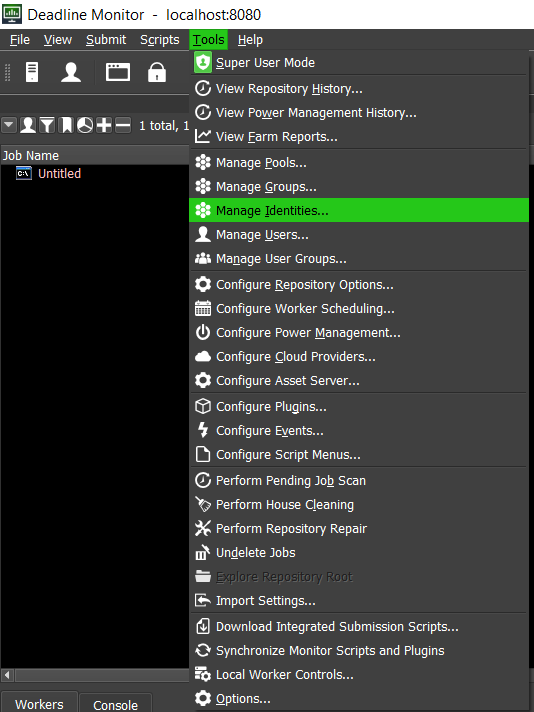

As a Super User, select “Tools > Manage Identities…” and enter your administrator credentials in the popup. This will open the Manage Identities user interface, where you can set the status and roles of any registered Identities.

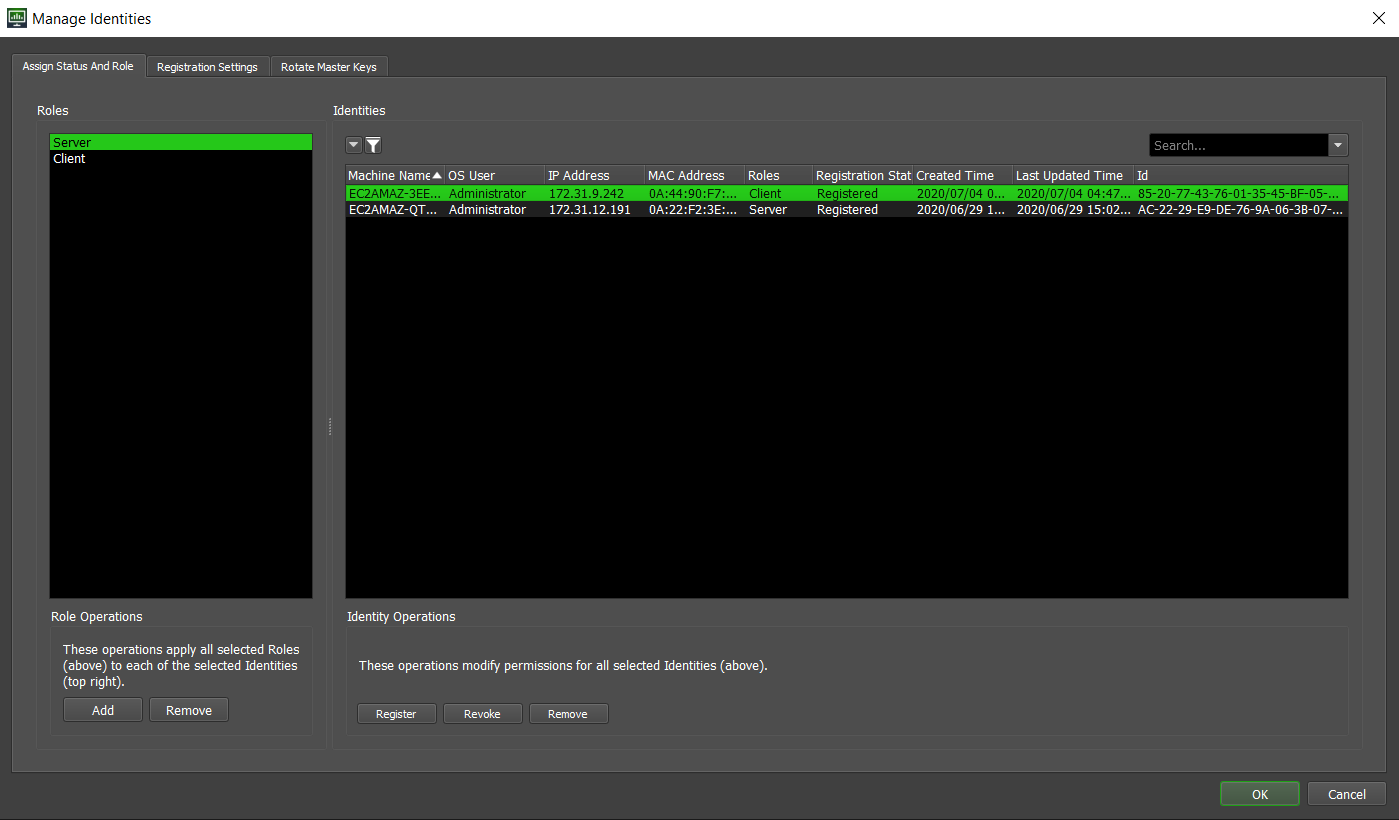

../../_images/monitor_manage_identities_menu.png ../../_images/monitor_2.png ../../_images/monitor_manage_identities_page.png

Identity Registration Settings

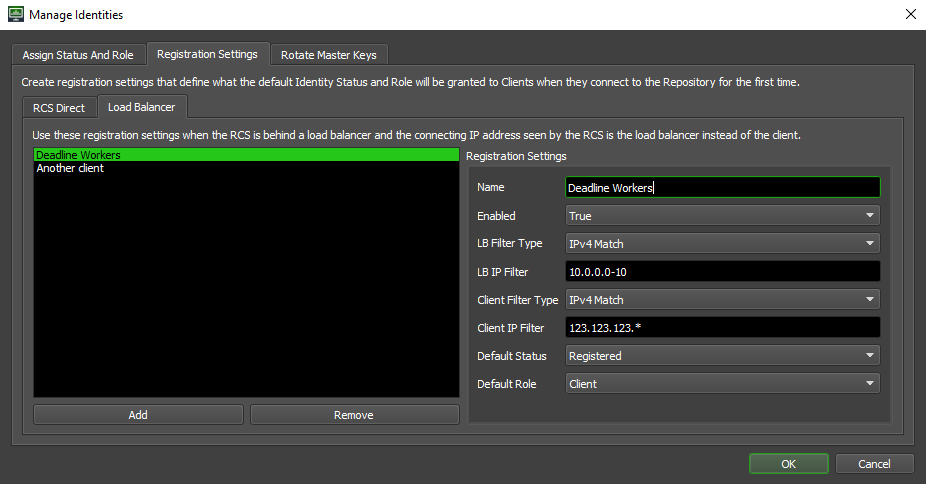

An alternative to manually Assigning Identity Status and Roles is creating Registration Settings that will be applied to any connecting client when they register for the first time. These settings can be used to automatically set the Registration Status and Assigned Role of a registering client that matches the given filters. Note that only a valid administrator user can access these settings through the Monitor application’s Manage Identities user interface.

../../_images/monitor_registration_settings.png

Note that the first setting that matches a registering client will be used. Each field will be explained below:

  • Name: The optional name of this specific registration setting.
  • Enabled: If set to “True”, these settings will be applied, if “False”, these settings will never be used.
  • Client Filter Type: What type of filtering strategy will be used.
    • IPv4 Match: Applies the settings to a registering client based on the IP Address of the connection (for example, if your client has its traffic routed through a load balancer, the IP will be matched to that of the load balancer). You can specify specific IP addresses, or a range of IP addresses (by using wildcards or ranges). Note that this only works with IPv4. Do not use this for IPv6 addresses. For example:
      • 192.168.0.1-150
      • 192.168.0.151-255
      • 192.168.0.*
    • IPRegex Match: Applies the settings to a registering client based on the IP Address of the connection (for example, if your client has its traffic routed through a load balancer, the IP will be matched to that of the load balancer). You can use regular expressions to match a Client’s IP address. This works with both IPv4 and IPv6 addresses. For example:
      • 192.168..* will match IPv4 addresses not transported inside IPv6 starting with “192.168”.
      • [:fF]*192.168. should match IPv4 address even if they are carried over IPv6 addresses (ex “::ffff:192.168.2.128”).
  • Client Filter: The value of the filter, which will behave differently depending on the Client Filter Type.
    • Note: Filter values that are too permissive (for example, the value of “*”, which would apply to any client IP) will not be allowed due to the risk of allowing secret access to any connecting client
  • Default Status: The Registration Status that will be applied to the registering client that matches the filter.
  • Default Role: The Assigned Role that will be applied to the registering client that matches the filter.

Secret

A secret is any value that needs to be securely stored. This includes API keys, Usage Based Licensing activation codes, passwords, etc. Additionally, any Plugin Parameter with the Control Type of “Password” will be treated as a secret.

Secret Access Levels

Depending on the type of secret, the access rights of that secret differ. Currently, the different access levels of secrets in Deadline are the following:

  • Administrator

    • This refers to administrator-level secrets, such as Email Notification SMTP passwords, Render-As User passwords, UBL Activation Codes, UBL URLs, and Mapped Drives.
  • Application Plugins

  • Event Plugins

  • (Deprecated) Cloud Plugins

    • This refers to cloud plugin-level secrets, and can be written and read by all Assigned Identity Roles. (Note that cloud plugins are deprecated)
  • (Deprecated) Balancer Plugins

    • This refers to balancer plugin-level secrets, and can be written and read by all Assigned Identity Roles. (Note that the Balancer is deprecated)

Master Key

When running the Repository Installer for the first time, an Administrator user and a Master Key will be created. This Master Key is used to securely encrypt and decrypt secrets stored in the database. The initial Master Key will be assigned to the initial admin. Any Server or Administrator that needs to manage secrets is required to have the latest master key to manage secrets.

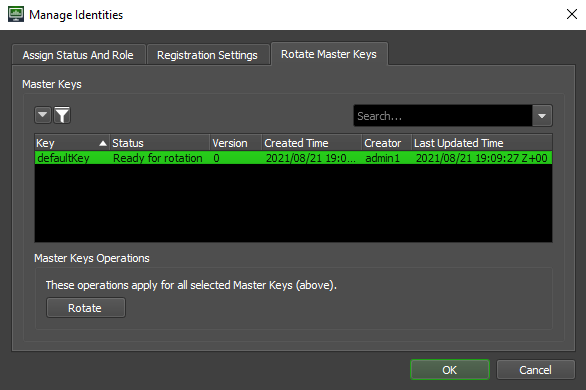

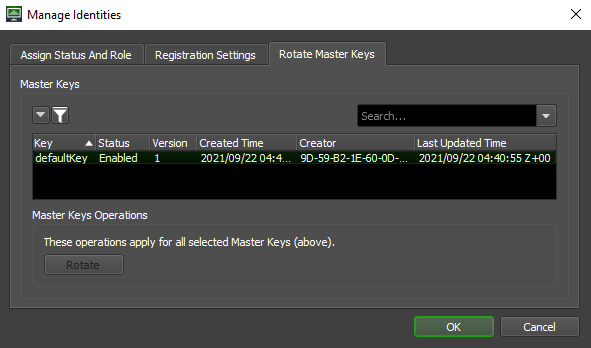

Rotating keys regularly is a common and good security practice. Please see Managing and Rotating Keys section for more information.

Administrator Commands

To properly manage secrets, the Secrets Management DeadlineCommand has been added. The Secrets Management DeadlineCommand lists a number of sub-commands used to manage Administrators, Master Keys, and Identities.

Note that the Secrets Management DeadlineCommands can only be run over direct connection, and are expected to be run on a Server machine.

For all the examples provided here the commands are ran on a Linux environment with the admin name set to be centos. The command execution is analogous on Windows machines.

AssignRole

$ ./deadlinecommand.exe secrets help AssignRole
  AssignRole
    Assign a role to multiple identities that match the specified IP address
      filter. Note that this command also set the registration status to
      "Registered". For unsuccessful assignments, a warning message will be
      displayed.
            [userId]                 The user Id of the Admin user
            [ipAddressFilter]        The filter to match the Identity Source IP
                                   address. "*" can be used to match all cases.
                                   (i.g. "10.1.1.1" or "10.1.1.*" or "*")
            [osUserFilter]           The filter to match OSUser. "*" can be used to
                         match all cases. (i.g. "root" or "centos" or
                         "*")
            [roleToBeAssigned]       The role to be assigned. [Client|Server]

Possible values for [ipAddressFilter] can be found using the ListAllMachines Secrets Management DeadlineCommand. The AssignRole command is useful for setting up initial server as outlined in Getting Started guide for Secrets Management.

In addition, AssignRole can be used to mass assign roles. Say you have machines that have IP addresses 10.1.1.* and you want to Register them all and assign them the Client role. For this task you would run:

$ ./deadlinecommand.exe secrets AssignRole centos "10.1.1.*" "*" "Client"

Make sure to wrap [ipAddressFilter], [osUserFilter] and [roleToBeAssigned] in quotation marks. For use examples of [ipAddressFilter] please see command ListAllMachines.

The GUI version of this command can be found in Deadline Monitor through Tools > Manage Identities….

ConfigureServerMachine

$ ./deadlinecommand.exe secrets help ConfigureServerMachine
  ConfigureServerMachine
    Configures a Secrets Management server machine, assigning the machine that
    runs this command a server role and granting it access to the specified master
    key.
        [userId]                 The user Id of the Admin user
        [masterKeyId]            The Id of the master key
        [osUser]                 Name of the OS User that the deadline client
                                applications will be running as on this machine.

This is a convenience command for configuring the initial Server machine. It will assign a server role and grant key access to an identity on the machine that runs the command.

Example usage: Say I am installing the Remote Connection Server on a machine and I want to initialize it to be able to use Secrets Management. In addition I know that the Remote Connection Server will be running as a user whose user name is jeff.

$./deadlinecommand.exe secrets ConfigureServerMachine admin1 defaultKey jeff

admin1 is the Secrets Management admin username that I set during the repository installation, defaultKey is the default name of the master key, and jeff is the operating system username of the user who will be running the Remote Connection Server.

CreateInitialAdmin

$ ./deadlinecommand.exe secrets help CreateInitialAdmin
  CreateInitialAdmin
    Create the initial Admin user. This command will fail if there is already one.
      [userId]                 The user Id of the Admin user
      [masterKeyId]            The Id of the master key to be generated

This command is called by the Repository Installer when creating the first Administrator user. You typically do not need to use this command, unless you want to manually enable the Secrets Management feature without running the Repository Installer.

CreateNewAdmin

$ ./deadlinecommand.exe secrets help CreateNewAdmin
  CreateNewAdmin
    Create a new Admin user and grant access to the given master key
      [userId]                 The user Id of the Admin user
      [masterKeyId]            The Id of the master key to be granted
      [newAdminUserId]         The Id of new Admin user

Use this when you need to grant admin status to another user:

$ ./deadlinecommand.exe secrets CreateNewAdmin existingUser masterKey newUser

newUser is equal in authority to existingUser as they both can revoke each other through the command RevokeAdminUser. existingUser must own the masterKey, which can be achieved by granting it by another admin user through Secrets Management DeadlineCommand GrantKeyAccessToAdmin, created with it using CreateInitialAdmin or CreateNewAdmin. Upon an installation that has Secrets Management enabled, the initial admin owns the masterKey called defaultKey.

You can get the list of available and enabled master keys for [masterKeyId] through ListAllMasterKeys Secrets Management DeadlineCommand.

DisableMasterKey

$ ./deadlinecommand.exe secrets help DisableMasterKey
DisableMasterKey
  Disable a master key
    [userId]                 The user Id of the Admin user
    [masterKeyId]            The Id of the master key to be disabled

If in the event that a master key has been compromised, you can disable the master key. This will cause all secrets that were encrypted by that master key to become irretrievable until a new key is generated and granted.

An example of disabling a master key:

$ ./deadlinecommand.exe secrets ListAllMasterKeys centos
Please enter your Admin password:
Key        Status  Version
========== ======= =======
defaultKey Enabled 0
$ ./deadlinecommand.exe secrets DisableMasterKey centos defaultKey
Please enter your Admin password:
Disabled master key (defaultKey).
$ ./deadlinecommand.exe secrets ListAllMasterKeys centos
Please enter your Admin password:
Key        Status   Version
========== ======== =======
defaultKey Disabled 0

Make sure to have the correct spelling of the key as you can disable nonexistent keys:

$ ./deadlinecommand.exe secrets DisableMasterKey centos keyThatDoesNotExist
Please enter your Admin password:
Disabled master key (keyThatDoesNotExist).

Disabling a key makes it useless for the admin users and servers that hold it. If you disable a key, then you will need have an admin generate a new one using GenerateNewMasterKey. This admin can then grant this key to other admin users and servers using Secrets Management DeadlineCommand GrantKeyAccessToAdmin and GrantKeyAccessToServer. You will then need to manually re-save each secret with the PutSecret command using the new key.

If you are looking to update your keys in a regular situation in which they are not compromised, then please refer to RequestKeyRotation.

DisableSecret

$ ./deadlinecommand.exe secrets help DisableSecret
DisableSecret
  Disable secret
    [userId]                 The user Id of the Admin user
    [secretId]               The Id of the secret to be disabled

You can disable a secret if you no longer wish for the secret value to be used by any Deadline Client applications. Note that when a secret has been disabled, it cannot be re-enabled, and will be rendered obsolete. You will not be able to view the secret until you save a new secret through the use of PutSecret.

In this example, we will initially save “blabla” as mySecret and then disable it.

$ ./deadlinecommand.exe secrets PutSecret centos mySecret ""
Please enter your Admin password:
New secret value:
Retype new secret value:
Successfully stored the secret.
$ ./deadlinecommand.exe secrets ListAllSecrets centos
Please enter your Admin password:
Secret Id                                   Secret Version MasterKey Id MasterKey Version Secret Description Secret Disabled
=========================================== ============== ============ ================= ================== ===============
mySecret                                    0              defaultKey   0                                    False
$ ./deadlinecommand.exe secrets GetSecret centos mySecret
Please enter your Admin password:
Secret Value
=============
blabla
$ ./deadlinecommand.exe secrets DisableSecret centos mySecret
Please enter your Admin password:
Disabled secret (mySecret).
$ ./deadlinecommand.exe secrets ListAllSecrets centos
Please enter your Admin password:
Secret Id                                   Secret Version MasterKey Id MasterKey Version Secret Description Secret Disabled
=========================================== ============== ============ ================= ================== ===============
mySecret                                    0              defaultKey   0                                    True
$ ./deadlinecommand.exe secrets GetSecret centos mySecret
Please enter your Admin password:
Secret Value
=============

After being disabled, the secret is now returned as an empty string.

GenerateNewMasterKey

$ ./deadlinecommand.exe secrets help GenerateNewMasterKey
GenerateNewMasterKey
  Genearte a new master key specified by masterKeyId. Note that you can only
  have one master key enabled at once. Please disable the existing one before
  you generate a new one.
    [userId]                 The user Id of the Admin user
    [masterKeyId]            The Id of the new master key to be generated

Having disabled the existing key through DisableMasterKey, we now generate a new one:

$ ./deadlinecommand.exe secrets GenerateNewMasterKey centos newKey
Please enter your Admin password:
New master key is successfully generated.

The admin user who called the command now is the owner of the key and can grant it to other servers and admins through GrantKeyAccessToServer and GrantKeyAccessToAdmin respectively.

If you try to generate another key:

$ ./deadlinecommand.exe secrets GenerateNewMasterKey centos newKey2
Please enter your Admin password:
Error: [SecretsManagement] You cannot have two enabled master keys at the same time. Please disable the existing one.

you will get an error. This is because it is only possible to have a maximum of one enabled key at any given time. To see all keys and their enabled status run ListAllMasterKeys.

GetSecret

$ ./deadlinecommand.exe secrets help GetSecret
GetSecret
  Retrieve a secret value. Note that this command can only work on a valid
  server machine.
    [userId]                 The user Id of the Admin user
    [secretId]               The Id of the secret

This is run on a server machine that has had a valid key granted to it through the Secrets Management DeadlineCommand GrantKeyAccessToServer. To know which [secretId] corresponds to the secret you want to see then run the Secrets Management DeadlineCommand ListAllSecrets:

$ ./deadlinecommand.exe secrets ListAllSecrets centos
Please enter your Admin password:
Secret Id                                   Secret Version MasterKey Id MasterKey Version Secret Description Secret Disabled
=========================================== ============== ============ ================= ================== ===============
/admin/ublsettings/UsageBasedActivationCode 0              defaultKey   0                                    False
/admin/ublsettings/UsageBasedURL            0              defaultKey   0                                    False

In this case, the secrets /admin/ublsettings/UsageBasedActivationCode and /admin/ublsettings/UsageBasedURL are saved through the Deadline Monitor in Tools > Configure Repository Options… > Usage Based Licensing in textboxes labeled: URL and Activitation Code. However, you can also update the value using Secrets Management DeadlineCommand PutSecret.

If you need to know what the value of /admin/ublsettings/UsageBasedURL is in the case that you forgot or do not have it saved elsewhere then you would run:

$ ./deadlinecommand.exe secrets GetSecret centos /admin/ublsettings/UsageBasedActivationCode
Please enter your Admin password:
Secret Value
=============
mysecret

The password here is printed to stdout.

If you enter a nonexistent [secretId] then you will just obtain an empty string:

$ sudo ./deadlinecommand.exe secrets GetSecret centos wrongId
Please enter your Admin password:
Secret Value
=============

GrantKeyAccessToAdmin

$ ./deadlinecommand.exe secrets help GrantKeyAccessToAdmin
GrantKeyAccessToAdmin
  Grants access for the specified master key to an Admin user after a key
  rotation. Note that this command can only work on a valid server machine.
    [userId]                 The user Id of the Admin user
    [masterKeyId]            The Id of the master key to be granted

This command is run on the Server that has the key. The server would have obtained the key from GrantKeyAccessToServer. Use ListAllMasterKeys to assist in assigning the appropriate and enabled key and ListAllAdminUsers to select [userId].

GrantKeyAccessToServer

$ ./deadlinecommand.exe secrets help GrantKeyAccessToServer
GrantKeyAccessToServer
  Grants access of the specified master key to the specified server
    [userId]                 The user Id of the Admin user
    [masterKeyId]            The Id of the master key
    [toServerUserId]         The server to be granted key access]

An example of running the command:

$ ./deadlinecommand.exe secrets ListAllMasterKeys centos
Please enter your Admin password:
Key        Status  Version
========== ======= =======
defaultKey Enabled 0

$ ./deadlinecommand.exe secrets GrantKeyAccessToServer centos defaultKey 61-3A-02-1B-AF-75-81-2D-AF-52-FB-93-85-E1-19-9F-11-4B-7F-2E-34-A4-83-FC-59-42-19-D2-E3-DA-07-76
Please enter your Admin password:
Successfully granted access to the server: (61-3A-02-1B-AF-75-81-2D-AF-52-FB-93-85-E1-19-9F-11-4B-7F-2E-34-A4-83-FC-59-42-19-D2-E3-DA-07-76

It is possible to grant disabled keys to servers. Make sure you are granting the right key. Run ListAllMasterKeys to get a list of all keys.

Value for [toServerUserId] can be obtained by running Secrets Management DeadlineCommand ListAllMachines.

Help

$ ./deadlinecommand.exe secrets help help
Help
  Show help information for sub-command(s)
    [sub-command]            The name of a specific sub-command( optional )

To output all available commands:

$ ./deadlinecommand.exe secrets help

To output help for a specific command, say for GetSecret:

$ ./deadlinecommand.exe secrets help GetSecret
GetSecret
  Retrieve a secret value. Note that this command can only work on a valid
  server machine.
    [userId]                 The user Id of the Admin user
    [secretId]               The Id of the secret

ListAllAdminUsers

$ ./deadlinecommand.exe secrets help ListAllAdminUsers
ListAllAdminUsers
  List all admin users
    [userId]                 The user Id of the Admin user

This will output both registered and revoked users. Users can be created/registered through CreateNewAdmin and revoked through RevokeAdminUser

$ ./deadlinecommand.exe secrets ListAllAdminUsers centos
Please enter your Admin password:
User    Status
======= ==========
centos  Registered
oldUser Revoked

ListAllLogs

$ ./deadlinecommand.exe secrets help ListAllLogs
ListAllLogs
  Lists the Secret audit logs.
    [userId]                 The user Id of the Admin user
    [--numlogs]              OPTIONAL: List only the N most recent logs,
                             where N is a non-negative integer

The logs contain the time, admin id who ran the action, the action and if the action was successful.

$ ./deadlinecommand.exe secrets ListAllLogs centos --numlogs 3
Please enter your Admin password:
Event Time (UTC), User Id, Action, Action information, Was successful
06/23/2020 12:37:36 centos CreateInitialAdminUser Created initial Admin and MasterKey(defaultKey). True
06/23/2020 12:37:38 centos ValidateAdminUserPassword Verified Admin password. True
06/23/2020 12:37:40 centos ValidateAdminUserPassword Verified Admin password. True

The logs are printed to stdout and can be redirected to a file.

We generally recommend keeping logs for up to 10 years as a security precaution.

ListAllMachines

$ ./deadlinecommand.exe secrets help ListAllMachines
ListAllMachines
  List all registered machines
    [userId]                 The user Id of the Admin user
    [ipAddressFilter]        The filter to match the Source IP addresses.
                             Surround arguments with quotation marks (i.g.
                             "10.1.1.1" or "10.1.1.*" or "*")
    [roleFilter]             The filter to match machine roles. Argument is
                             one of three: "Client","Server","*"

Make sure to wrap [ipAddressFilter] and [roleFilter] in quotation marks. An example:

$ ./deadlinecommand.exe secrets ListAllMachines centos "172.*" "*"
Please enter your Admin password:
Machine Name                                  Source IP Address Connection IP Address OSUser Roles    Status     Id
============================================= ================= ===================== ====== ======== ========== ===============================================================================================
ip-172-31-0-185.ca-central-1.compute.internal 172.31.0.185      172.31.0.185          centos [Server] Registered 61-3A-02-1B-AF-75-81-2D-AF-52-FB-93-85-E1-19-9F-11-4B-7F-2E-34-A4-83-FC-59-42-19-D2-E3-DA-07-76
ip-172-31-0-185.ca-central-1.compute.internal 172.31.0.185      172.31.0.185          root   [Server] Registered D4-87-E8-54-80-A6-79-25-05-F6-55-B5-7C-16-89-96-D2-A4-5F-D9-34-43-7E-36-A0-31-27-C2-56-69-4A-2D

Replacing "172.*" with "*", "172.*.*", "172.*.*.*", "*.31.*" or "*.0.*" will capture the two previous results while "*.0*." and "*.0*.* will not.

Replacing the last argument "*" with “Server” will capture the two previous results while "Client" will not.

ListAllMasterKeys

$ ./deadlinecommand.exe secrets help ListAllMasterKeys
ListAllMasterKeys
  List all master keys
    [userId]                 The user Id of the Admin user

The output will include disabled and enabled keys. It is possible to only have a maximum of one enabled key.

$ ./deadlinecommand.exe secrets ListAllMasterKeys centos
Please enter your Admin password:
Key        Status   Version
========== ======== =======
defaultKey Disabled 0
newkey     Enabled  2

ListAllSecrets

$ ./deadlinecommand.exe secrets help ListAllSecrets
ListAllSecrets
  List all secrets
    [userId]                 The user Id of the Admin user

For example:

$ ./deadlinecommand.exe secrets ListAllSecrets centos
Please enter your Admin password:
Secret Id                                   Secret Version MasterKey Id MasterKey Version Secret Description Secret Disabled
=========================================== ============== ============ ================= ================== ===============
/admin/ublsettings/UsageBasedActivationCode 0              defaultKey   0                                    False
/admin/ublsettings/UsageBasedURL            0              defaultKey   0                                    False

MigrateSecrets

$ ./deadlinecommand.exe secrets help MigrateSecrets
MigrateSecrets
  Migrate existing secrets from the legacy storage to the Secrets Management
  storage. Note that secrets will still exist in the legacy storage and can be
  removed by running the "RemoveLegacySecrets" command. Be sure to run this
  command before running "RemoveLegacySecrets" in order to not remove all secret
  copies.
    [userId]                 The user Id of the Admin user
    [masterKeyId]            The Id of the master key with which secrets will
                             be encrypted

This command is run in the installer and is not useful for general use unless working through a manual installation process.

PerformKeyRotation

PerformKeyRotation
  Find master keys requested to be rotated and perform the key rotation process.
  Note that this is usually done by one of the servers automatically. This
  command provides the Admin an alternative way to kick off the process. Note
  that this command can only work on a valid server machine after an Admin
  requested the key rotation by using "RequestKeyRotation" command.
    [userId]                 The user Id of the Admin user

This command requires for rotation to be requested through RequestKeyRotation. To see what the rotation will do, please see RequestKeyRotation.

PutSecret

$ ./deadlinecommand.exe secrets help PutSecret
PutSecret
  Store a secret value. Note that this command can only work on a valid server
  machine.
    [userId]                 The user Id of the Admin user
    [secretId]               The Id of the secret
    [secretDescription]      The description of the secret

A commandline way of saving or updating secrets. You can leave the [secretDescription] empty by using quotation marks:

$ ./deadlinecommand.exe secrets PutSecret centos mySecretId ""
Please enter your Admin password:
New secret value:
Retype new secret value:
Successfully stored the secret.

RemoveLegacySecrets

$ ./deadlinecommand.exe secrets help RemoveLegacySecrets
RemoveLegacySecrets
  Removes existing secrets from the legacy storage locations. Note that you can
  run the "MigrateLegacySecrets" command to migrate existing secrets to the
  Secrets Management locations before you remove from legacy store.
    [userId]                 The user Id of the Admin user

This command is run in the installer and is not useful for general use unless working through a manual installation process.

RequestKeyRotation

$ ./deadlinecommand.exe secrets help RequestKeyRotation
RequestKeyRotation
  Requests a key rotation for the given master key. After a key rotation is
  requested, a valid Server will automatically complete the following: 1) A new
  master key will be generated and assigned to the given Admin user profile. 2)
  All Server profiles will be updated with the new master key. Note that other
  Admin user profiles will NOT be updated with the new master key. To grant the
  key access to other Admins after the key rotation is done, run the
  "GrantKeyAccessToAdmin" command.
    [userId]                 The user Id of the Admin user
    [masterKeyId]            The Id of the master key to be rotated

After a rotation request is submitted, the server will rotate the keys. This rotation request would be proccessed within a minute as that is the frequency that the server checks for such requests. Once the server picks up the request, the server will complete the equivalent of what PerformKeyRotation command does. This means that you can fast-track the rotation process by running PerformKeyRotation after running RequestKeyRotation.

The rotation involves generating a new master key for [masterKeyId] and incrementing the version as can be observed through ListAllMasterKeys before and after execution. The new key version will be given to those servers that already have the most recent version of the key. Finally, the stored secrets will be re-encrypted using this new key.

The much more manual approach to this command is done through running DisableMasterKey, GenerateNewMasterKey and then granting the keys to appropriate admins and servers through GrantKeyAccessToAdmin and GrantKeyAccessToServer.

ResetAdminPassword

$ ./deadlinecommand.exe secrets help ResetAdminPassword
ResetAdminPassword
  Change password for selected admin
    [userId]                 The user Id of the Admin user
    [adminUserIdForPassword] The user Id of the Admin user who will have
                             their password changed

Admin [userId] will reset the password of [adminUserIdForPassword]. You can reset your own password:

$ ./deadlinecommand.exe secrets ResetAdminPassword centos centos
Please enter your Admin password:
Please enter new password:
Please re-enter the new Admin password again:
Changed password for (centos).

RemoveRole

$ ./deadlinecommand.exe secrets help RemoveRole
RemoveRole
  Remove a role from multiple identities that match the specified IP address
  filter. For unsuccessful removals, a warning message will be displayed.
    [userId]                 The user Id of the Admin user
    [ipAddressFilter]        The filter to match the Identity Source IP
                             address. "*" can be used to match all cases.
                             (i.g. "10.1.1.1" or "10.1.1.*" or "*")
    [roleToBeRemoved]        The role to be removed. [Client|Server]

This command is similar in functionality to AssignRole. The only difference is that in this case a role is removed which is specified in [roleToBeRemoved].

Make sure to wrap [ipAddressFilter] in quotation marks. More examples for IP arguments provided in ListAllMachines.

RevokeAdminUser

$ ./deadlinecommand.exe secrets help RevokeAdminUser
RevokeAdminUser
  Revoke an admin user
    [userId]                 The user Id of the Admin user
    [adminUserToBeRevoked]   The user Id of the Admin user being revoked by

Have admin [userId] revoke an admin [adminUserToBeRevoked]. As an admin you can revoke any other admin except yourself. Run ListAllAdminUsers Secrets Management DeadlineCommand to find all the admin users.

After an admin user has been revoked, they can no longer access any Secrets Management features.

RevokeKeyAccessFromServer

$ ./deadlinecommand.exe secrets help RevokeKeyAccessFromServer
RevokeKeyAccessFromServer
  Revokes access of the specified master key from the specified server
    [userId]                 The user Id of the Admin user
    [masterKeyId]            The Id of the master key
    [toServerUserId]         The server to have it's key access revoked

This command is useful for removing the access of a master key from an admin. The admin executing the command needs to have access to the key. This is a more precise version of DisableMasterKey.

Installation

Installing Secrets Management Feature

  1. Secrets Management is enabled by running the Repository Installer. Follow the Repository Installer and Secrets Management Getting Started to install the Repository.
  2. Select the option to install the Deadline Secrets Management feature, and create an initial admin (this is the recommended option).
  3. Please securely record your administrator password, as there is no way to recover a lost password if there is only one administrator.
  4. Note that if you forget your password:
    • You will be locked out of all secrets, and will be unable to recover a lost password (unless another admin exists).
    • The admin password is also required for managing identities. You will be unable to allow client machines to access secrets.
    • You will be able to remove and install the Secrets Management feature again by re-running the installer, but you will lose access to all previously created secrets.

For more detail please see Getting Started page.

Unattended mode installation

To install Secrets Management in unattended mode, you need to provide next parameters: --installSecretsManagement true, --secretsAdminName, and --secretsAdminPassword.

  • If you want to remove legacy secrets, also set --removeLegacySecretsSetup to true.
  • To remove the existing Secrets Management installation, set --removeSecretsManagement to true.

Examples (Windows, database already installed):

DeadlineRepository-windows-installer.exe --mode unattended --installmongodb false --secretsAdminName *** --secretsAdminPassword **** --dbssl true --dbhost "db-ip-address" --dbport 27100 --dbclientcert "C:\certs\cert_path.pfx" --dbname "deadline10db" --dbauth "true" --installSecretsManagement "true"

See Command Line or Silent Installation for more information about unattended mode.

Upgrade existing install without Secrets Management

Note that this is strongly not recommended as Deadline’s new Secret Management feature provides the most secure way to store your secret information, such as passwords and API keys.

  1. Follow the Repository Installer documentation to update your Repository.

  2. You will be prompted with the recommended option to install the Secrets Management feature.

  3. Select “Skip the Secrets Management installation” and continue with installation as normal.

    ../../_images/secrets_management_setup.png

Upgrading existing install while already using Secrets Management

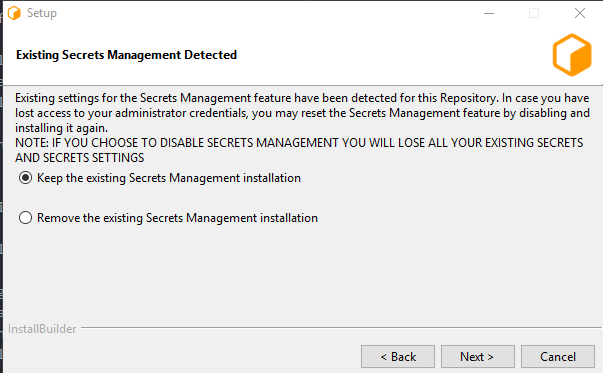

  1. Follow the Repository Installer documentation to update your Repository.

  2. The installer will automatically detect that the Secrets Management Feature is enabled.

  3. Select “Keep the existing Secrets Management Installation” and continue installation as normal.

    ../../_images/disable_secrets_management.png

Managing Identities

Registering/Revoking Identities and Adding/Removing Roles

  1. Open the Monitor, connected to the RCS, as Super User, go to the “Tools > Manage Identities…” UI.
  2. You will be prompted to enter your Administrator credentials, enter them and select “OK”. Note that selecting the “Keep me signed in” option will keep you logged in for as long as the Monitor is open, or until you select the “Tools > Sign Out” button.
  3. The “Manage Identities” window will open, showing all Identities that have registered themselves to the repository. Each Identity’s status will be set to “Pending”, “Registered”, or “Revoked”.
  4. To register Identities, select one or multiple Identities with the status “Pending” and select the “Register” button and select “OK”, which changes the status of all selected Identities to “Registered”.
  5. To grant roles to Identities, select one or multiple registered Identities, select the role(s) you want to grant them, select the “Add” button, then select “OK”.
  6. To revoke the status for Identities, select multiple Identities with the status “Registered” that you want to revoke, hit the “Revoke” button and select “OK”, which changes the status of all selected Identities to “Revoked”.
  7. To revoke roles from Identities, select one or multiple registered Identities, select the role(s) you want to revoke from them, select the “Revoke” button, then select “OK”.

Automatically Registering Identities and Adding Roles

  1. Open the Monitor, connected to the RCS, as Super User, go to the “Tools > Manage Identities…” UI.
  2. You will be prompted to enter your Administrator credentials, enter them and select “OK”. Note that selecting the “Keep me signed in” option will keep you logged in for as long as the Monitor is open, or until you select the “Tools > Sign Out” button.
  3. The “Manage Identities” window will open, showing all Identities that have registered themselves to the repository.
  4. Click the “Registration Settings” tab to view all of your currently configured Identity Registration Settings. These will automatically be applied to any machine the first time it registered.
  5. To create new settings, simply click the “Add” button, and configure the new setting to match the IP Address or range of IP Addresses of the machines you want to have the default Registration Status and Identity Role.
  6. You can remove any existing registration settings by clicking one or multiple in the list, and hitting the “Remove” button.
  7. Once you are done, hit the “OK” button to save your changes.

On-premise machines retrieving secrets

  1. Install the Deadline Client onto any number of your on-premises machines.
  2. Set the Launcher to start a Worker on startup, connecting to the RCS running on your farm.
  3. After installation, a Worker application starts and automatically registers itself by communicating with the RCS.
  4. Follow the Registering/Revoking Identities and Adding/Removing Roles steps above to grant the desired role to each of the registered machines.

EC2 retrieving secrets

  1. Install the Deadline Client onto any number of your AWS EC2 instances.
  2. Set the Launcher to start a Worker on startup, connecting to the RCS running on your farm.
  3. After installation, a Worker application starts and automatically registers itself by communicating with the RCS.
  4. Follow the Registering/Revoking Identities and Adding/Removing Roles steps above to grant the desired role to each of the registered machines.

Spot fleet retrieving secrets

  1. Create a client EC2 instance and grant it the desired role as per the EC2 retrieving secrets steps above.
  2. In the EC2 AWS console, create an AMI (Amazon Machine Image) of that instance.
  3. Use the newly created AMI when creating the Spot Fleet Request used for the Spot Event Plugin.

AWS Portal

When using AWS Portal with Secrets Management, all instances created from the same AMI will share the same identity. This means that if you grant a Client role to the first AWS Portal Worker instance registered in the “Manage Identities” window, all AWS Portal Workers that use the same AMI will share that role.

Managing and Rotating Keys

Deadline Secrets Management is only as strong as the weakest administrator password, therefore we suggest making a strong password, with at least 8 characters which contains at least one lowercase, uppercase, numeric and special character.

Changing admin password

  1. Log onto a machine connected to the Database, that has Deadline Client installed.
  2. Open a terminal and run the ResetAdminPassword command, passing your username, your old password, your username (to denote you want to change your password), and your new password.

Rotating Keys

  1. Log onto a machine connected to the Database, that has DeadlineCommand installed.
  2. Open a terminal and run the RequestKeyRotation, passing your username, your password, and the master key ID.
  3. If successful, a key rotation will be requested and automatically executed by a running RCS.
  4. If you wish to start a key rotation immediately, run the PerformKeyRotation command, specifying the master key ID.

Forgetting a password with other existing admin

  1. Another administrator logs onto a machine connected to the Database, that has DeadlineCommand installed.
  2. They open a terminal and run the ResetAdminPassword commmand, passing their username and password, and your username and your new temporary password.
  3. They then securely tell you the new temporary password.
  4. You can then reset your password using temporary password following the “Changing admin password” steps above.

Forgetting a password with no other admin

If there are no other administrators, unfortunately there is no way to recover your password.

You will have to run the Repository Installer, selecting the option to create a new administrator and master key, erasing all existing secrets.

NOTE: this will erase all of your existing secrets, Identities, and Master keys.

Creating a new admin

  1. Log onto a machine connected to the Database that has DeadlineCommand installed.
  2. Open a terminal and run the CreateNewAdmin command, passing your username and current password, and the username and temporary password for the new Admin user.
  3. Securely tell the new Admin user their username and temporary password.
  4. The new Admin user resets their password following the “Changing admin password” steps above.

Creating and Updating Secrets

Storing secrets for plugins/events/repository settings

  1. Open the Monitor, connected to the RCS, as Super User, go to the Tools > Configure Plugins / Events / Repository Settings.
  2. Add any secrets for plugins / events / repository setting and select “OK”.
  3. You will be prompted for your administrator credentials, enter them and select “OK”.

Storing secret for custom plugin

  1. Create a new plugin following the Application Plugin Documentation.
  2. Add the “Password” Control Type to any plugin parameter that needs to be stored securely.
  3. Upload the new plugin to the Repository.
  4. Open the Monitor, connected to the RCS, as Super User, go to the Tools > Configure Plugins.
  5. Find your new plugin, enter the secret values, and hit “OK”.
  6. You will be prompted for your administrator credentials, enter them and select “OK”.

Retrieving Secrets

Worker retrieving secrets

  1. An admin user stores secrets following any of the Creating and Updating Secrets steps
  2. Any user starts the Worker application, which automatically registers itself
  3. An admin follows the Registering/Revoking Identities and Adding/Removing Roles steps to set the Identity status to “Registered” and grant the Worker Identity a “Client” role.
  4. Any user submits a job that requires secrets
  5. The Worker runs the job, and retrieves any secrets it requires

Logs

You can view your logs through the use of the ListAllLogs command.

We generally recommend keeping logs for up to 10 years as a security precaution.

Troubleshooting

Forgot Password

Please see the Rotating Keys section for how to rotate your password if other administrators exist.

Corrupted master key

An encrypted version of the master key is assigned to each administrator and server identity that has access to it. Another admin can re-grant the master key to the admin with the corrupted key. If there is only one admin, the secrets will not be able to be decrypted; a new master key will need to be made, and new secrets will need to be made. It is due to this risk that we strongly recommended you keep regular backups of your Database so you can recover from a corrupted master key.

Connection errors

If you are getting the error

Error: Repository connection setting is not Direct connection.

when running adminstrator commands on your server machine, make sure your connect your Deadline Monitor via Remote Connection - this can be done using DeadlineCommand:

deadlinecommand.exe -changerepository

If this still does not work, then confirm that your deadline.ini file ConnectionType is set to equal Direct and not Remote.

Glossary

Identity
A user as part of the Secrets Management feature. This is identified by a public key and operating system user for machines, and a username for administrator.
Secret
Any sensitive information that should not be shared openly, and might be used to gain access to other systems (e.g., passwords, API keys). See Deadline Managed Secrets for some examples.
Authentication
Validates that a user’s actual identity matches their claimed identity.
Authorization
Validates that a user is allowed to perform a given action.
Server Application
An application that has direct access to the Database used for central storage. In the case of Deadline, this is the Remote Connection Server.
Client Application
An application that does not have direct access to the Database used for central storage. Must communicate with a Server application (i.e. the Remote Connection Server) to perform business operations.
