How to Load a Mesh¶

At this point we assume you have either
- Saved one or more objects to XMesh files using the XMesh Saver plugin of 3ds Max or Maya.
- Received XMesh files from another user.
Create an XMeshLoader, which is found in the Thinkbox category.

../../../_images/xmesh-loader-mx_create_panel.png

In the XMeshLoader you created, click the “…” button to the right of Render Sequence in the Files rollout.
In the “Select the Mesh Sequence to Add” dialog that appears, choose an .xmesh file from the sequence you want to load.

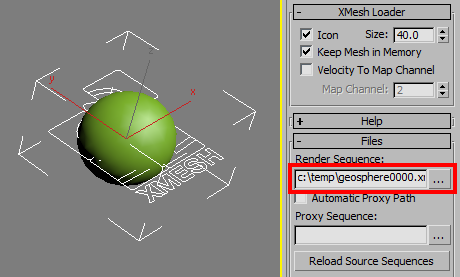

The mesh should appear in the viewport:

../../../_images/xmesh-loader-mx_ui_hilight_render_sequence.png
