Installing AWS Portal Server

In this section, you will install the AWS Portal Server. The AWS Portal Server is used to communicate between your network and AWS. For more information, please see the AWS Portal Component Overview.

Prerequisites

Before starting this section, you should have:

Choose a Machine to Run the AWS Portal Server

AWS Portal Server must be installed on a Windows or Linux machine that can see both your local file server and your Deadline repository. It should be installed only on a single machine within your network.

AWS Portal should usually be installed on a machine that’s always on, and that’s always connected to the Internet. This is because the Deadline Workers that you launch on AWS can only process jobs when they are connected to the AWS Portal.

It’s possible to install AWS Portal on a machine that you shut down regularly, or that is not always connected to the Internet, such as a laptop. However, if the AWS Portal server shuts down, or if it loses its connection to the Internet, the Deadline Workers and infrastructure will continue to run, and you will be billed for them, but they will not be able to process any jobs.

Install the Deadline Client

You must install the Deadline Client on the machine that will run the AWS Portal, before installing AWS Portal.

The AWS Portal requires a running Deadline Remote Connection Server (RCS). It’s convenient to install the RCS on the same machine that will run the AWS Portal.

Installing the Deadline Remote Connection Server

The Deadline Remote Connection Server (RCS) is installed by the Deadline Client installer. The RCS must be installed on a machine that has access to your Deadline Repository, and the AWS Portal Server must be able to connect to the RCS.

Note that the installer includes an option that will make it easier for you to configure and run the RCS. This is enabled by checking ‘Remote Connection Server’ on the ‘Select Components’ page of the installer:

../_images/client_install_rcs_component.png

We recommend that you enable this option on the machine that you will use to run the RCS. On all platforms, this option will add a new Launcher menu item to start the Remote Connection Server. On Windows, this option will also add a namepace reservation for your Remote Connection Server.

We will describe how to run the Remote Connection Server later.

Install AWS Portal

To install AWS Portal, run the AWS Portal Link installer (located with your Deadline installers):

  • On Windows: AWSPortalLink-<VERSION>-windows-installer.exe
  • On Linux: AWSPortalLink-<VERSION>-linux-x64-installer.run

Where <VERSION> is the version number of AWS Portal, for example, 10.0.0.

Proceed through the installer.

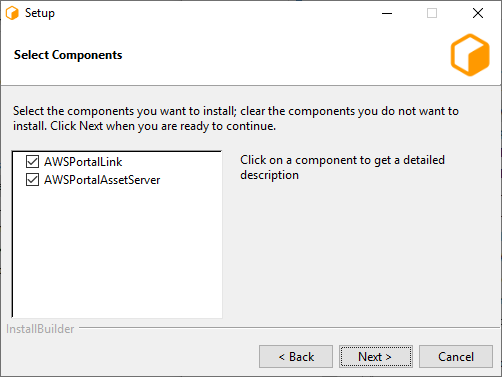

You will be asked to select which components to install: AWS Portal Asset Server or AWS Portal Link. It’s most convenient to install both on the same machine. However, if you would like to install them separately, you can select which one you would like to install here.

../_images/3-awsportal-components.png

AWS Portal Asset Server

While installing the AWS Portal Asset Server component of AWS Portal:

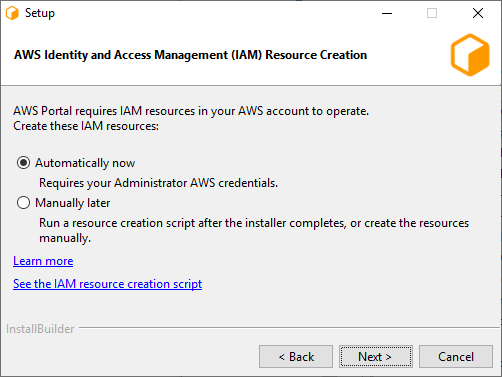

  • The installer will ask if you want to create the AWS Portal’s Identity and Access Management (IAM) Resources Automatically or Manually:

    ../_images/8-awsportal-iam-resource-creation.png
    • If you choose “Automatic”, the installer will prompt you for your Administrator IAM user credentials, and it will create the resources for you.
    • If you choose “Manual”, you can run a script to create the resources after the installer completes, or you can create the same resources manually.

    Learn more about AWS Portal IAM Resource creation.

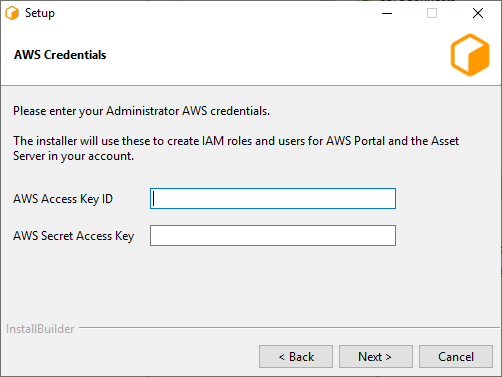

  • If you chose to create IAM resources “Automatically”, then the installer will prompt you for your AWS credentials. Enter the keys that you saved during the IAM Admin user setup steps that you followed earlier.

    ../_images/9-awsportal-credentials.png

    Warning

    On Linux these credentials are stored unencrypted, however, they will have their permissions set to 0600.

    Per our shared responsibility model, we recommend you take additional steps to protect these credentials such as encrypting the hard drive of the machine which AWS Portal Asset Server is installed on.

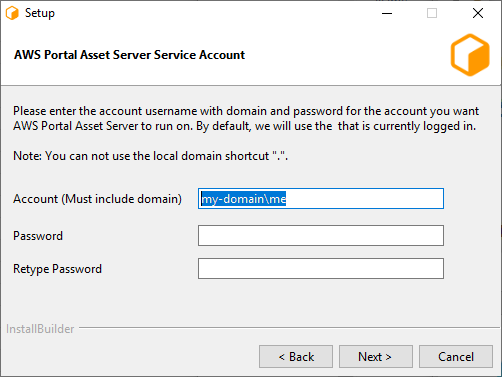

  • On Windows, the installer will prompt you for “AWS Portal Asset Server Service Account”.

    ../_images/11-awsportal-asset-service-account.png

    Enter the name of the account you wish to run the service in, and the account’s password. The account name must include the domain, in the form domain\username. If you do not have a domain, use the name of your computer instead.

    Note

    AWS Portal Asset Server must be installed on an account that allows logging on as a service, access to the Deadline repository, and access to your asset directories. If you are running on a domain, talk to your domain administrator.

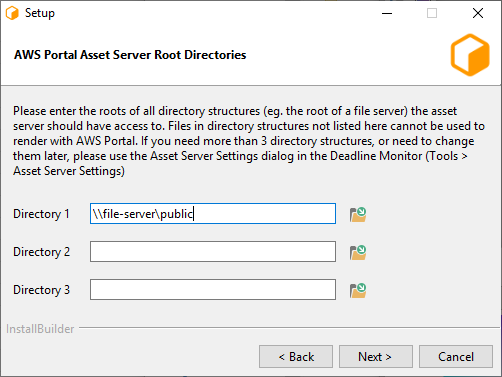

  • The installer will prompt you for “AWS Portal Asset Server Root Directories”.

    ../_images/12-awsportal-root-directories.png

    Select one or more directories for the Asset Server to access. Typically you would select the root directory of the filesystem that contains your asset files.

    The asset server will be able to read assets from these directories, and write output files to them. Note that the asset server can also access sub-directores of the specified directory, so if you specify \\fs-01\assets, then the asset server will also be able to access \\fs-01\assets\images.

    If you need more than three directories, or need to modify the directories later, you can do so in the Configure Asset Server dialog in the Deadline Monitor (Tools menu → Configure Asset Server).

    Note

    If you are installing on Windows, and your asset server uses a letter drive, please see Windows Mapped Drives and Custom Service Accounts.

Proceed through the installation until it’s done.

Next Step

After installing AWS Portal, you should start the Deadline Remote Connection Server.
