Animation Settings Toolbar

../../_images/animation_toolbar.png
  • The toolbar contains controls related to assigning animation to selected objects.
  • This toolbar is visible in the Default layout.
../../_images/icon_animation_turntable.png

Create A New TURNTABLE Animation For The Currently Selected Objects

  • When pressed, a Turntable Animation will be added to every selected object.

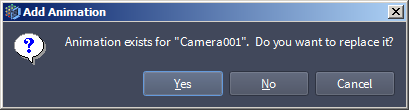

  • If an object already has Turntable or Keyframe Animation assigned, a prompt will appear:

    ../../_images/replace_animation_popup.png
    • Click Yes to replace all existing Animation with a new Turntable Animation with default settings.
    • Click No to add a new Turntable Animation while keeping any existing Animations. The new Animation will be performed in the space defined by the previous Animations.
    • Click Cancel to keep the existing Animation and create no new Animation.
../../_images/icon_animation_keyframe.png

Create An Animation KEYFRAME For The Currently Selected Objects

  • When pressed, a Keyframe Animation will be added to every selected object.
  • If an object already has a Turntable Animation assigned, a prompt will appear (see above).
  • If an object already has a Keyframe Animation assigned, a new Keyframe will be set in the existing Animation.
    • If the Timeline slider has not been moved and the Current Time is less or equal to the last Keyframe time, the new Keyframe will be added 1 second after the last Keyframe, without advancing the Timeline.
    • If the Timeline slider has been moved and Current Time is greater than the last Keyframe, the new Keyframe will be created at the Current Time.
