Projection Layers Panel

  • The Projection Layers Panel shows all Image Projection objects in the current Document.
  • It lets you adjust the order of the Image Projections similar to Photoshop Layers in order to produce the expected mixing of multiple projected images.
  • No Projection Layers Panel instance exists in the default startup SEQUOIA layout.
  • New Projection Layer Panels can be created using the Main Menu > Panels > PROJECTION LAYERS - Create New Panel menu item.
  • The new Projection Layer Panel will be docked by default as another tab next to the Document Explorer panel.

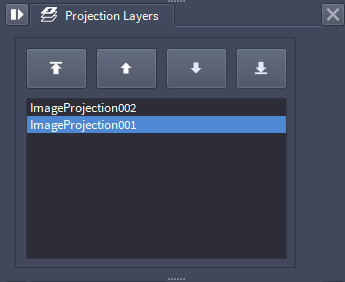

../../_images/projection_layers_panel.png

TO TOP Button

  • Moves the selected Image Projection to the top of the list, making it the top-most layer.
  • The Image Projection will become the last to be drawn on top of all other Image Projections.

MOVE UP Button

  • Moves the selected Image Projection one position up.

MOVE DOWN Button

  • Moves the selected Image Projection one position down.

TO BOTTOM Button

  • Moves the selected Image Projection to the bottom of the list.
  • The Image Projection will become the first one to be drawn before all other Image Projections.
