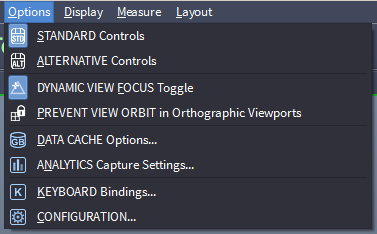

Options Menu¶
- The Options menu lets you customize the mouse input mode, keyboard shortcuts, adjust the caching settings, and configurate SEQUOIA.
STANDARD Controls¶
- Enables the Standard Viewport Navigation mouse controls (Middle-Mouse-Button-centric)
- ALT+Middle Mouse Button = Orbit
- Middle Mouse Button = Pan
- CTRL+ALT+Middle Mouse Button = Zoom
- Roll Wheel = Zoom
ALTERNATIVE Controls¶
- Enables the Alternative Viewport Navigation mouse controls (ALT-Key-centric)
- ALT+Left Mouse Button = Orbit
- ALT+Middle Mouse Button = Pan
- ALT+Right Mouse Button = Zoom
- Roll Wheel = Zoom
DYNAMIC VIEW FOCUS Toggle¶
- When checked, placing the mouse pointer over a point cloud or a mesh during viewport Orbit or Zoom will move the View Focus Point dynamically.
- When unchecked, the static View Focus point in the center of the Viewport will be used.
- This value applies globally to all Viewports of all Documents.
- The last state of this option will be stored in an INI file and will persist between SEQUOIA Sessions.
PREVENT VIEW ORBIT in Orthographic Viewports¶
- When checked, attempting to orbit in Planar Orthographic Views like Top, Front, Left etc. will result in no viewport rotation.
- When checked, orbiting in Planar Orthographic Views will result in an Isometric Orthographic view - use the P key or the Perspective/Ortho icon to switch to Perspective view.
- This value applies globally to all Viewports of all Documents.
- The last state of this option will be stored in an INI file and will persist between SEQUOIA Sessions.
DATA CACHE Options...¶
- Opens the Data Cache setup dialog.
- It provides controls over
- the amount of physical memory to be used for data caching,
- the memory threshold before using Out Of Core conversion, and
- the location of Out Of Core Workspace files.
ANALYTICS Capture Settings...¶
- Opens the Analytics Capture Settings dialog.
- It controls whether anoymous usage statistics will be collected and sent to Thinkbox Software to improve the quality of the software.
KEYBOARD Bindings...¶
- Opens the “Map Keyboard Bindings” dialog.
- It can be used to edit existing and assign new keyboard shortcuts to various SEQUOIA commands.
CONFIGURATION...¶
- Opens the SEQUOIA Configuration dialog.
- It provides options, preferences and default values that can be used to tweak the behavior of various tools and sub-systems.
